Technical parameters
1.Input voltage: 5-24VDC
2.Output type: PWM constant voltage
3.Output current: 4CH, 5A/CH
4.Output power: 100-480W
5.Grey levels: 4096/CH
6.Dimming range: 0-100%
7.Remote distance: 30m
8.Working temperature: -30℃~55℃
9.Dimension: L115×W48×H67mm
10.Weight: 120g
Summary

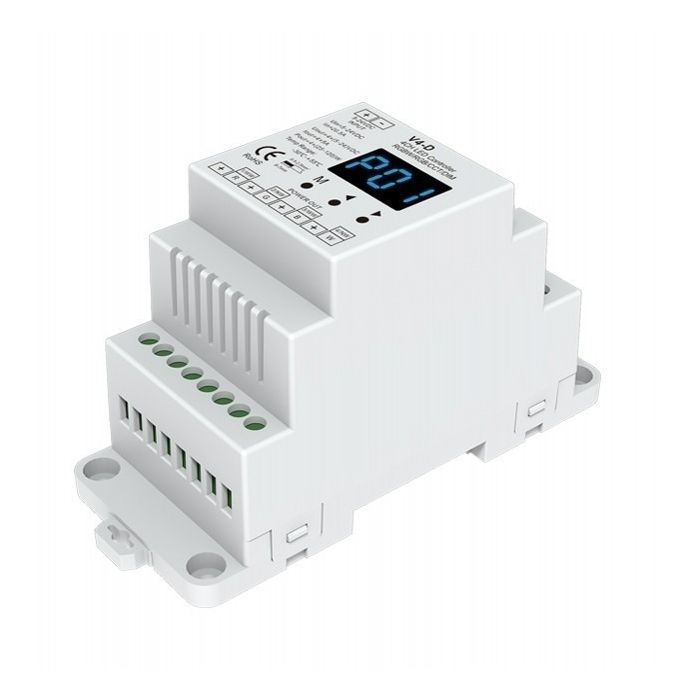

1.Din rail mounted constant voltage controller, four channel output, 5A per channel.
2.Default as RGBW controller, create colorful static or dynamic effect.
3.Can also be used as RGB, color temperature or dimming controller, good compatibility.
4.Full compatibility with a variety of single color, dual color and RGB/RGBW remoters.
5.PWM achieve 4096 levels flicker-less dimming.
6.When control RGB/RGBW lamp, built in 30 change mode optional.
7.Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
8.Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
9.Work with power repeater to expand output unlimitedly.
Package Include:
1 Piece of Skydance V4-D CV LED RF Controller 4CH*5A DC 5-24V
1 Piece of User's Manual
CE and RoHS approved
