Features
1.10A 3 channel PWM constant voltage RF controller.
2.Default as RGB controller, need match RGB remote, create colorful static or dynamic effect.
3.Can also be used as color temperature or single color dimming controller, good compatibility.
4.Full compatibility with a variety of single color, dual color and RGB remote.
5.Smooth dimming and switch without any flickering.
6.When control RGB lamp, built in 10 mode, include jump or gradual change style, adjustable speed and brightness.
7.Adopt 2.4GHz wireless technology, can accept up to 10 remote control.
8.Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
User can customize own RGB change mode list by APP for advanced function.
9.Work with power repeater to expand output unlimitedly.
Match guide
V3-X receiver match with all kinds of single or multiple zone 2.4G RF remote controller.
After match different color RF remote, the receiver become the same color controller.
Use Match key
1. Match: Short press match key, then press on/off key or zone key of the remote within 5s.
2. Delete: Long press match key for 5s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone receiver.
Use Power-up
1. Match: Switch off the power, then switch on power again,short press on/off key or zone key 3 times on the remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5 times on the remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.
Package Included:

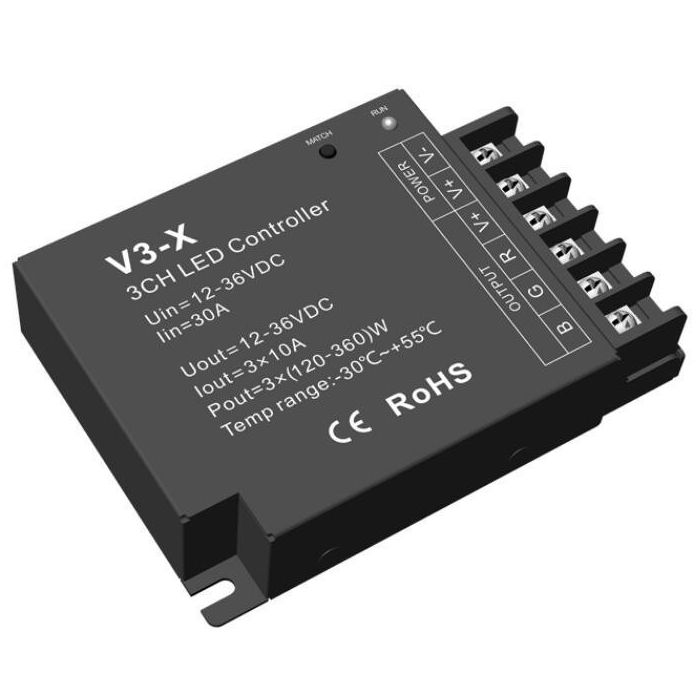

1 Piece of Skydance V3-X CV 3CH*10A DC 12-36V LED Controller
1 Piece of User's Manual
CE and RoHS approved
