The dimmer is constant voltage dimmer, input DC12-48V as power input, input AC40V-220V as dimming signal,output current is 15A max.
Support all triac dimming system, such as Lutrom,Clipsal,Dynalite, etc.
Feature
1.Triac dimming, input AC40V-220V dimming signal.
2.Support all Triac dimming system.
3.One channel PWM constant voltage output, output current 15A max.
4.Smooth dimming curve without any flicker.
5.0-100% brightness adjustment.
6.Over current protection, short circuit protection, over temperature protection.
7.LED indicate current state.
Technical parameters
Input voltage: 12-48VDC
Dimming voltage: 40-220VAC
Output current: 15A max
Output power: 12V: 180W max 24V: 360W max 36V: 540W max 48V: 720W max
Working temperature: -30℃~55℃
Product size: L175×W45×H27mm
Package Included:

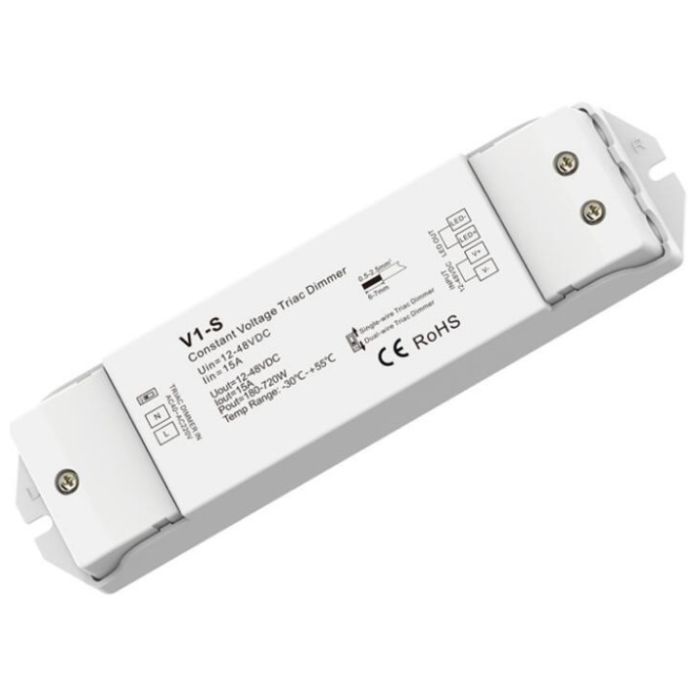

1 Piece of Skydance V1-S 1CH 15A CV Triac Dimmer
1 Piece of User's Manual
CE and RoHS approved
