The Triac DMX512 dimmer is designed with 100-240VAC input and 100-240VAC output, safe and reliable full isolation design to dim and
switch single color LED lamps, traditional incandescent and halogen lights.The DMX512 dimmer is designed with standard DMX512 compliant
control interface with digital numeric display to set and show DMX address freely, can be compatible with a variety of DMX512 masters.
The AC dimmer is both triac dimmable and mosfet dimmable and comes with 2 channel output.
Feature
1.AC phase-cut mosfet dimmer with DMX512 function, digital display, two channel output.
2.DMX decode mode / Stand-alone 2 channel dimmer mode / Stand-alone dynamic mode.
3.Standard DMX512 compliant interface, DMX address display, set DMX address freely.
4.RDM bi-directional communication function.
5.Under stand-alone dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.
6.Under stand-alone dynamic mode, have 4 mode.
7.1/2 DMX channel decode optional.
8.Reverse-phase dimming or forward-phase dimming optional.
9.Minimum brightness set from 1% to 40%.
10.To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
11.For S1-DR, din rail or screw mounted optiona
Package Included:

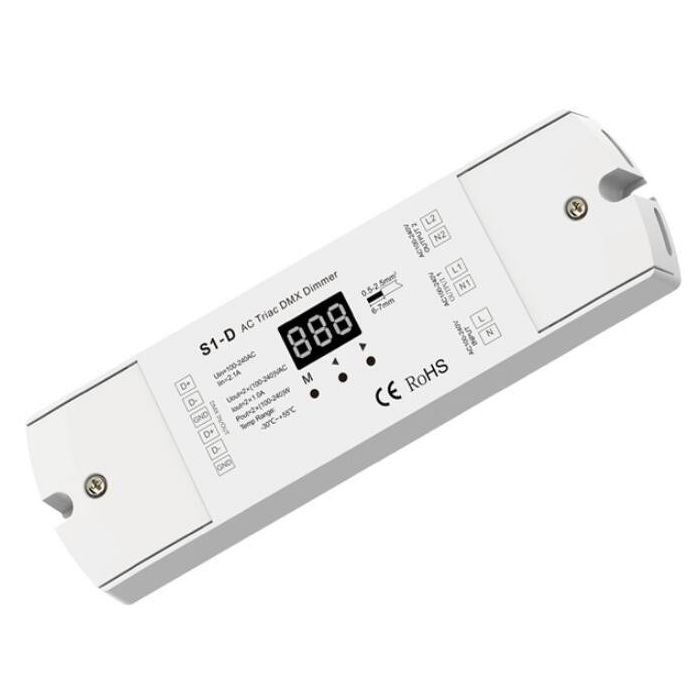

1 Piece of Skydance S1-D 2CH*1A AC Triac DMX Dimmer
1 Piece of User's Manual
CE and RoHS approved
