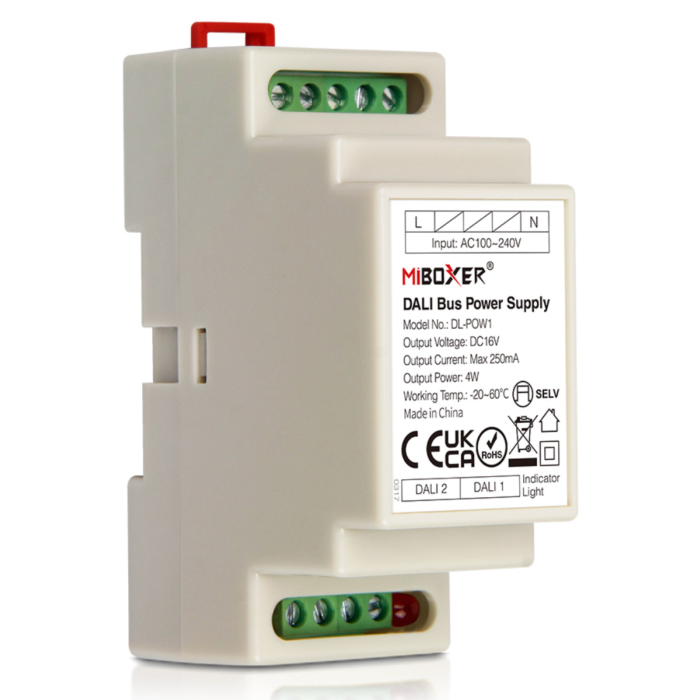

MiBoxer DL-POW1 DALI Bus Power Supply DIN Rail AC100-240V Input

A$21.33
In stock
SKU
MiBoxer DL-POW1 DALI Bus Power Supply DIN Rail AC100-240V Input
  • Buy 100 for A$19.93 each and save 7%

• Short-circuit protection

• Low-voltage protection

• Anti-fire PC case

• Class 2 power supply

• Compliant with Safety Extra Low Voltage standard

For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com





Product Parameters

Product Name: DALI Bus Power Supply (DIN Rail)

Model No.: DL-POW1

Input Voltage: AC100-240V   50/60Hz

Input Current: 115Vac/≤0.09A, 230Vac/≤0.05A

Leakage Current: <0.5mA/230Vac

Inrush Current: Cold start 10A at 230Vac

Setup Time: 115Vac<2500ms, 230Vac<1000ms (at full load)

Output Voltage: DC16V

Output Current: 250mA Max

Max. Reted power: 4W

Ripple & Noise: 0.2Vp-p (at full load)

Working Temp.: -20-60℃

Working Humidity: 20 ~ 95%RH, non-condensing

Safety & EMC

Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH

Package Included:

1 Piece of MiBoxer DL-POW1 DALI Bus Power Supply DIN Rail AC100-240V Input

Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_1
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_2
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_3
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_4
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_5
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_6
Mi_Light_DL_POW1_DC16V_4W_DALI_Bus_Power_Supply_DIN_Rail_7

CE and RoHS approved

Processing Shipping & Tracking

Mostly the parcel will be shipped within around 1 to 2 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. service@agodx.com

Our website is very easy to use, the shipping fee base on the weight of the products. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.

All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to worldwide with tracking number.
