Wifi-104 Lighting Control System
WiFi-104 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing
related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.
WiFi-104 lighting control system integrated with four functional controls including dimming, color temperature adjusting, RGB and RGBW, which could be set as single color,
color temperature(nature white+warm white and nature white+warm white+cool white), RGB and RGBW five types. It can simply control various of led lightings which has installed on WiFi software.
Meanwhile, it supports max 12 zones control. We could do for you what you think!
WiFi - 104 control system supports direct or through a router two network connection mode:
As a direct way, mobile phone, pad can directly control the WiFi - 104 controller + R4-5A or R4-CC a wireless control, without any third party of network equipment ;
Through a router connection, in addition to reach all the functions of direct connection, and will not affect the normal Internet access router at the same time,
a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient , for example, there are two sets of systems, can support 24 areas.
In addition, you can DIY the lighting on software according to your habits. You can DIY any color, any changing you like. It will let yourself relish in your sense of accomplishment for your special life colour.
You can also use our 2.4G RF remote M12 if there is no software, more options for you.

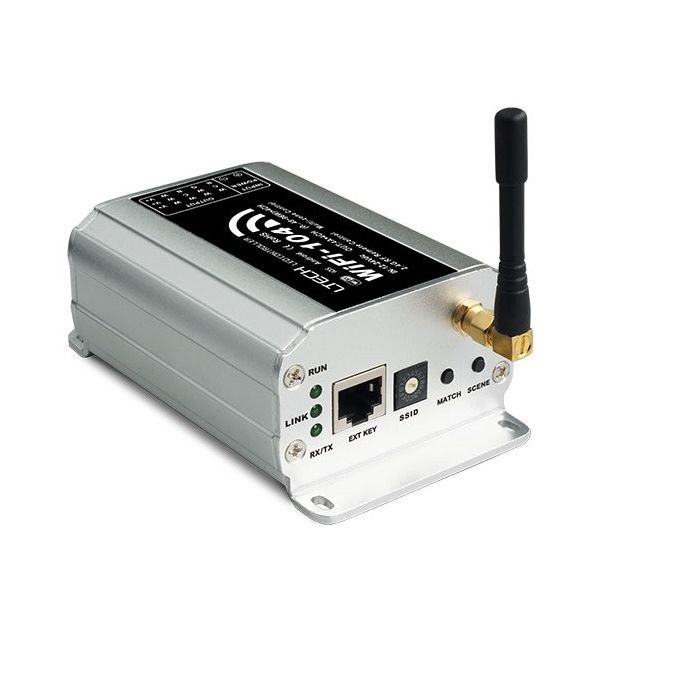

WiFi-104 Controller
Communication standard 2.4GHz Wi-Fi, 802.11b/g/n protocol
Input voltage DC12V~DC24V
Max current load 4A x4CH Max 16A
Max output power 192W/384W(12V/24V)
Control distance Max 100m
Working temperature -20~50
Dimensions L128*W73*H45mm
Package size L135*W80*H50mm
Weight (G.W.) 290g
M12 Remote Control
Working voltage DC3V(Battery CR2032 )
Working Frequency 2.4GHz
Remote Distance 50m
Dimensions L104*W60*H9mm
Weight (N.W.) 42g
R4-5A CV Zone Receiving controller
Working Frequency 2.4GHz
Input voltage DC5V~DC24V
Max current load 5A x4CH Max 20A
Max output power 100W/240W/480W(5V/12V/24V)
Remote Distance 30m
Working temperature -30~55
Dimensions L175*W44*H30mm
Package size L178*W48*H33mm
Weight (G.W.) 110g
R4-CC CC Zone Receiving controller
Working Frequency 2.4GHz
Input voltage DC12V~DC48V
Output voltage DC3V~46V
Output current CC 350/700/1050mA×4CH(3 in 1)
Output power 1.05W-48.3W×4CH
Remote Distance 30m
Working temperature -30~55
Dimensions L175×W44×H30mm
Package size L178×W48×H33mm
Weight (G.W.) 110g
Package included :
1 Piece of LTECH WiFi-104 WiFi LED Lighting Controller DC12V~DC24V Input Voltage
CE and RoHS approved
