SE-30-150-900-G1T
Rubycon capacitor
Dimming interface: Triac/ELV
Input voltage: 220-240Vac
Power Factor: PF>0.95/230Vac, at full load
Efficiency(typ.): >86%@750mA
Strobe Level: High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 150-900mA
Output Power: 1.35W-30W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,BIS,ROSH
Warranty: 5 years
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
1.35-6.3W 9-42V 150mA
1.8-8.4W 9-42V 200mA
2.25-10.5W 9-42V 250mA
2.7-12.6W 9-42V 300mA
3.15-14.7W 9-42V 350mA
3.6-16.8W 9-42V 400mA
4.05-18.9W 9-42V 450mA
4.5-21W 9-42V 500mA
4.95-23.1W 9-42V 550mA
5.4-25.2W 9-42V 600mA
5.85-27.3W 9-42V 650mA
6.3-29.4W 9-42V 700mA
6.75-30W 9-40V 750mA
7.2-29.6W 9-37V 800mA
7.65-29.75W 9-35V 850mA
8.1-29.7W 9-33V 900mA
Package Include:

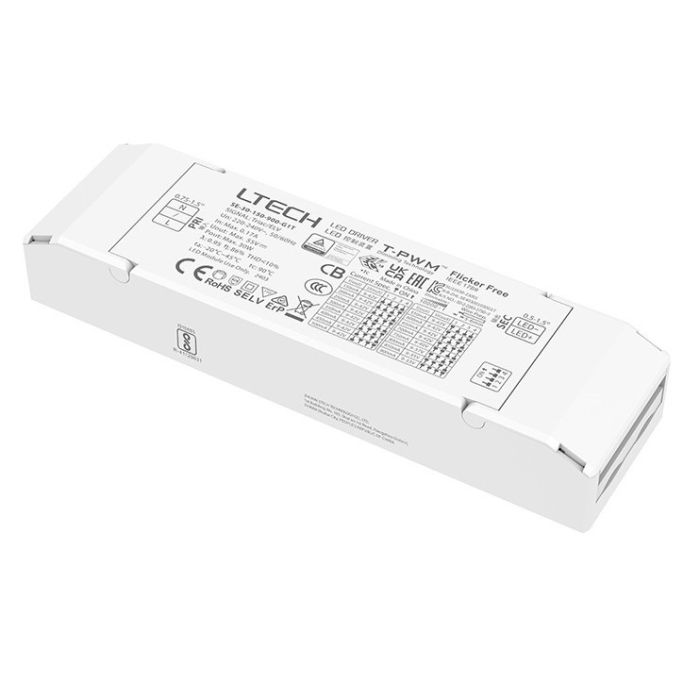

1 Piece of Ltech SE-30-150-900-G1T 30W 150-900mA 9-42Vdc CC Triac LED Driver
1 Piece of Product Manual
CE and RoHS approved
