Fully Digital circuit design, excellent performance and long working life
PWM digital dimming, maintain the best LED’s CRI(color rendering index)
Standard logarithmic dimming curve, the human eye visual feel more comfortable
60000:1 wide dimming range, 0-100% full dimming range，LED start at 0.1% possible
Power factor>0.99, Efficiency>85%, THD(Total Harmonic Distortion)<10%
Wide rang voltage+optional arbitrary current, workable with led lights at differeAnt power
Short circuit / Over-temperature /Over load protection
Current consistent in multi LED driver working, balanced light
Class 2 security isolation power supply,full protective plastic housing
Compliant with SELV(Safety Extra Low Voltage) standard

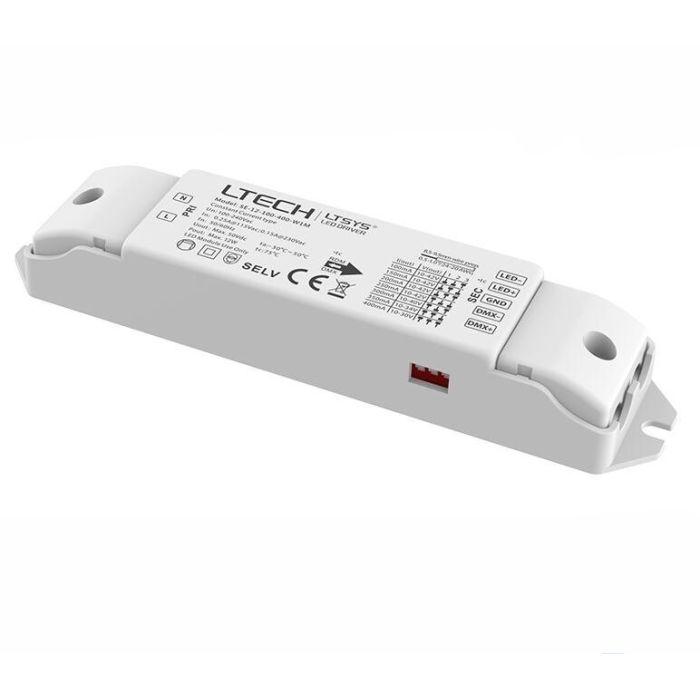

Model: SE-12-100-400-W1M
Dimming interface: DMX512/RDM
Dimming range: 0~100%, 0.1% dimming depth.
Input voltage: 100-240Vac
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
1-4.2W 10-42V 100mA
1.5-6.3W 10-42V 150mA
2-8.4W 10-42V 200mA
2.5-10.5W 10-42V 250mA
3-12W 10-40V 300mA
3.5-12W 10-34V 350mA
4-12W 10-30V 400mA
Package Content:
1 Piece of SE-12-100-400-W1M DMX512 Dimmable Driver
CE and RoHS approved
