Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature,
RGB and RGBW. And the output power of receiver is higher.
4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.
With innovative technology design:One receiver compatible with eight different functions of the remote control (patent technology), that is use one receiver can experience dimming,
color temperature and RGB controlled, which can satisfied the different demands of client.
M series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.

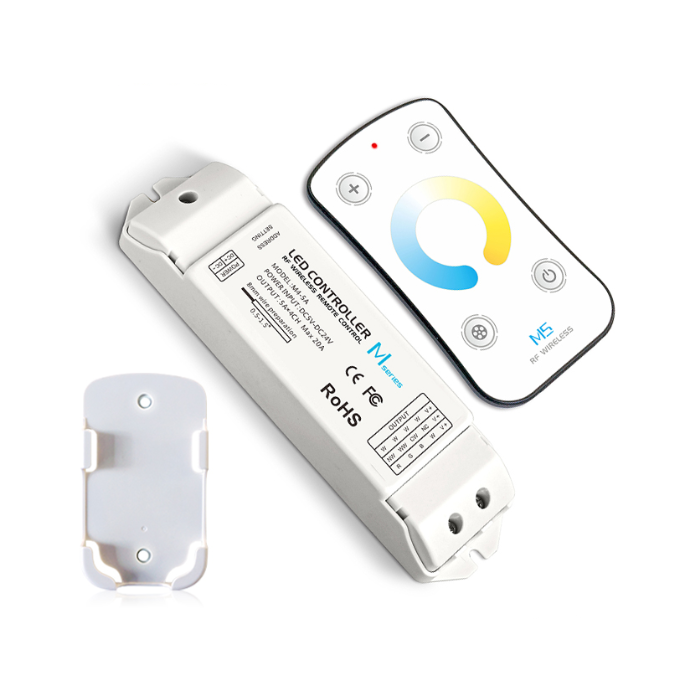

M5 Remote Control
Working voltage DC3V(Battery CR2032 )
Working Frequency 433.92 MHz
Remote Distance 40-50m
Working Temp. -20~55
Dimensions L104×W60×H9mm
Weight (N.W.) 42g
M4-5A Receiving controller
Power input DC5V-DC24V
Max Current load 5A ×4CH Max 20A
Max Output power 100W/240W/480W(5V/12V/24V)
Compatible remote M1/M2/M3/M4//M5/M6/M7/M8
Gray scale level Max 4096×4096×4096×4096
Working Temp. -30~55
Dimensions L175×W44×H30(mm)
Weight (N.W.) 125g
Package Include:
1 Piece of LTECH LED M5 12V Input 5A 4CH 20A Output Remote M4-5A CV Receiver
CE and RoHS approved
