Digital signal mode
DMX-SPI signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights
with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.
Our DMX decoder can control LED lights based on following driving ICs:
LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, P9813 IC etc.
The grey scales of DMX decoder depends on the driving IC, the above driving ICs are with a built-in grey scale processor and occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can
simply turn normal LED digital light to DMX512 LED light with international standard communication protocol, which is easy to promote in the international market.
DMX-SPI decoders are widely used in the LED string light, LED dot light, SMD flexible strip, LED digital tube, wall light, pixel screen, high power spot light, wall washer and kinds of LED digital lights.

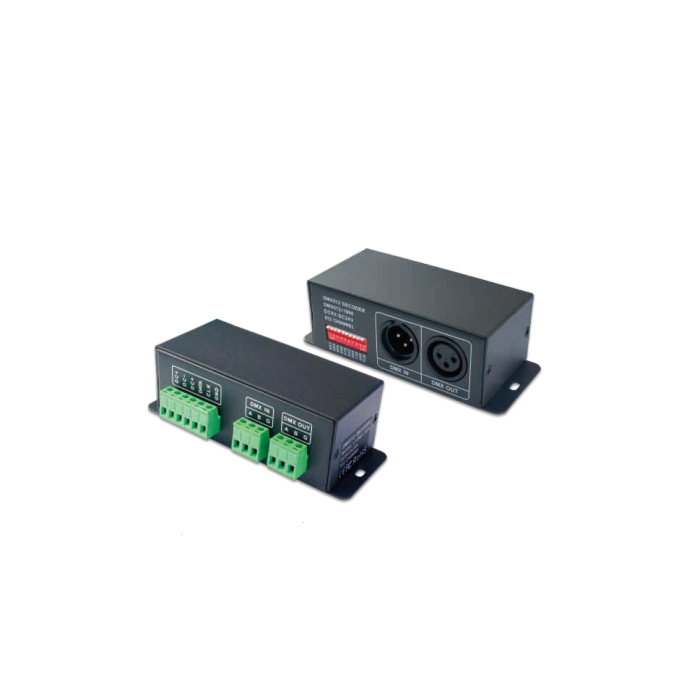

LT-DMX-1809 DMX Decoder
Input voltage DC5V~DC24V
Input signal DMX512
Output signal
compatible with the driving IC such as TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811
Decoder channels 512 DMX CH/unit
Grey Scale 256 levels/CH (8bit/CH)
DMX512 socket: XLR-3, Green terminal
Dimming range 0~100%
working temperature -30~65
Dimension L125*W52*H40mm
Package Size L135*W70*H50mm
Weight (G.W) 300g
Package Included:
1 Piece of LTECH LT-DMX-1809 DMX-SPI Decoder DC5V~24V DMX512 Signal
CE and RoHS approved
