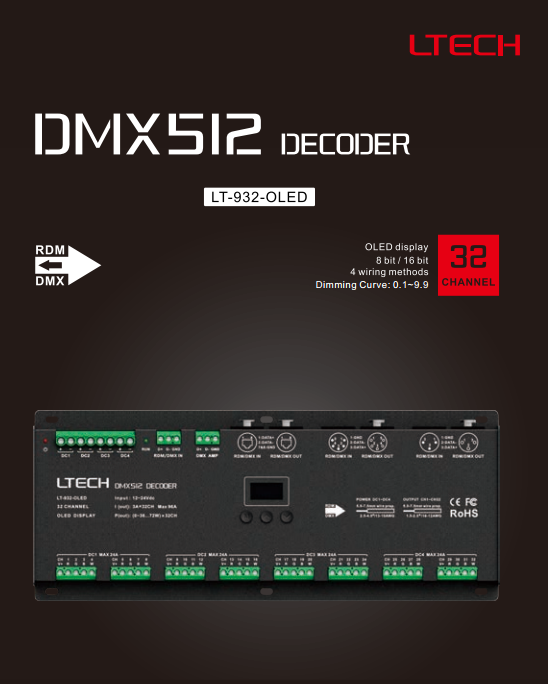

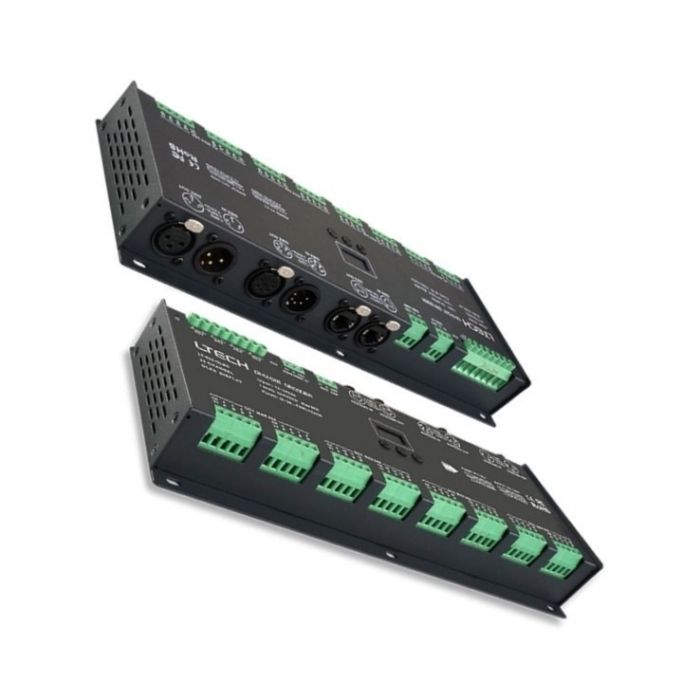

Ltech LT-932-OLED 32 Channels DMX Controller 12V 24V DC Decoder

Be the first to review this product

A$281.91

In stock

SKU

Ltech LT-932-OLED 32 Channels DMX Controller

Buy 30 for A$259.73 each and save 8%
Buy 100 for A$240.71 each and save 15%

Ltech LT-932-OLED 32 Channels DMX Controller 12V 24V DC Decoder is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com

Agodx.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

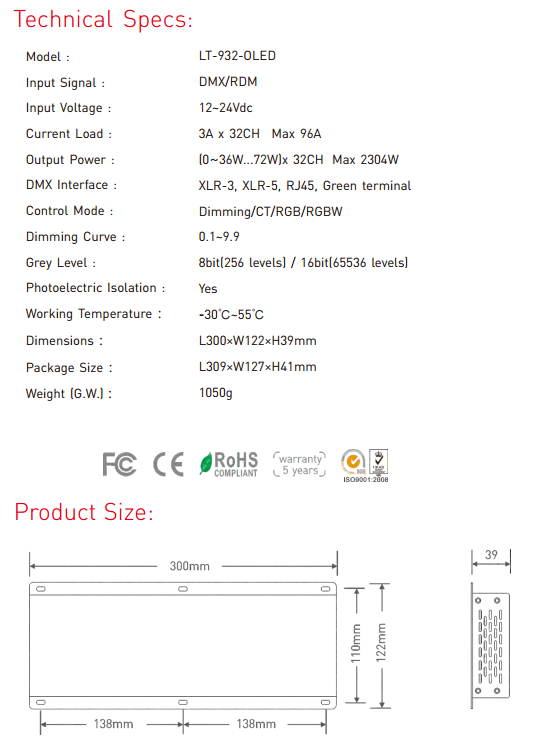

Input signal: DMX512/RDM

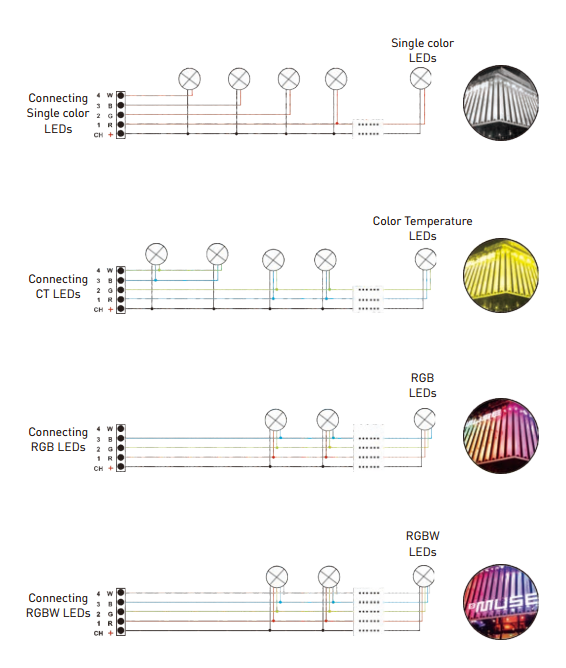

Control mode: DIM/CT/RGB/RGBW

Input voltage: DC12V～DC24V

Max load current: 3A ×32CH Max. 96A

Max output power: (0~36W...72W) x32CH Max.2304W

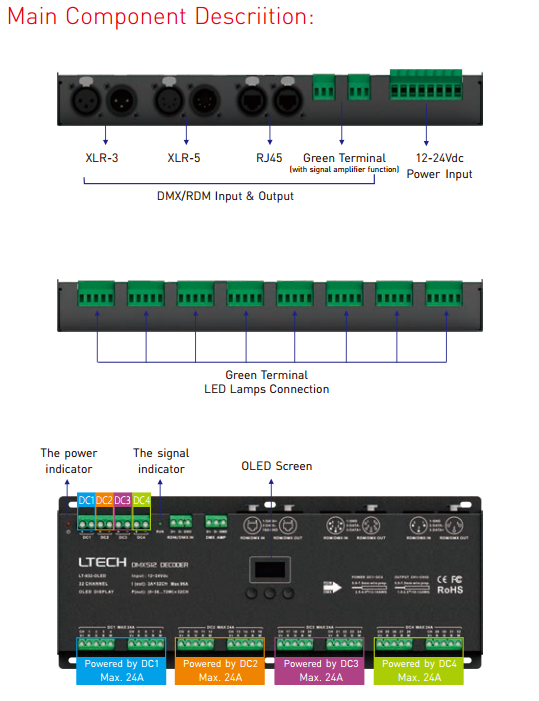

DMX512 socket: XLR-3, XLR-5, RJ45, Green terminal

DIM Curve: 0.1～9.9

Working temperature: -30℃～65℃

Photoelectric Isolation: Yes

Gray scale level: 8bit(256 levels)/16bit(65536 levels)

Dimension: L300×W122×H39(mm)

Package Size: L309×W127×H41(mm)

Weight (G.W): 1050g

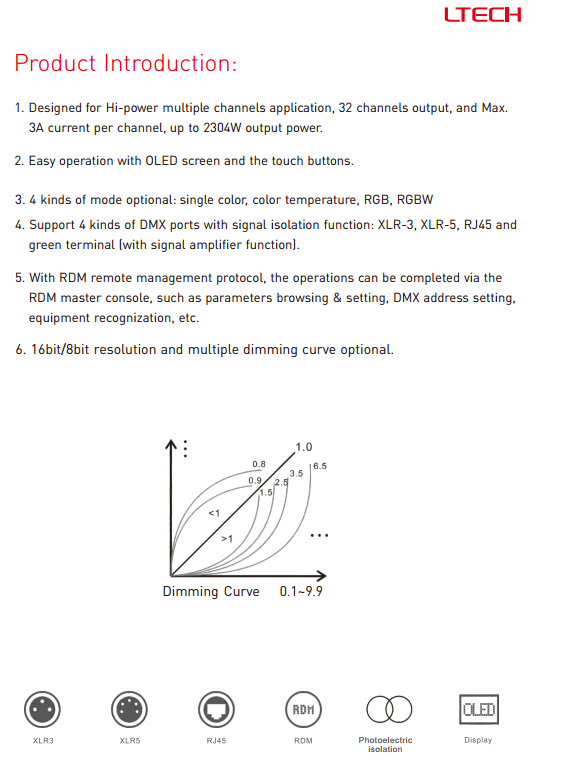

Product Introduction:

1. Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power.

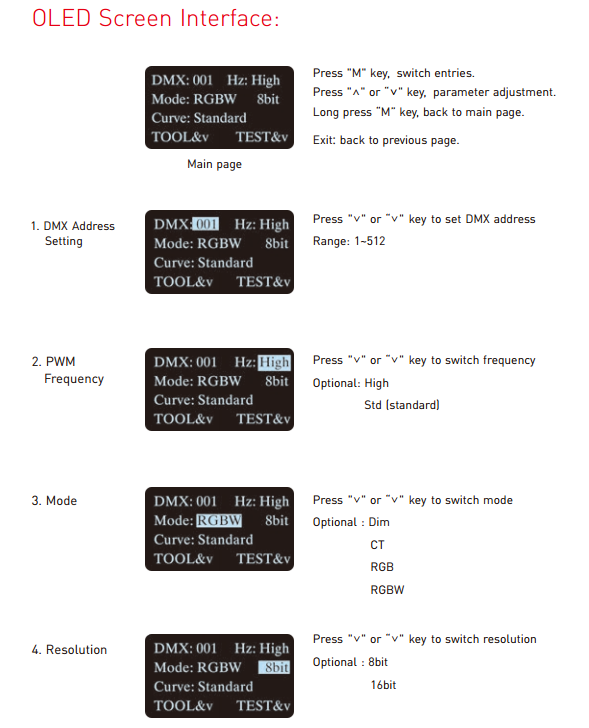

2. Easy operation with OLED screen and the touch buttons.

3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW.

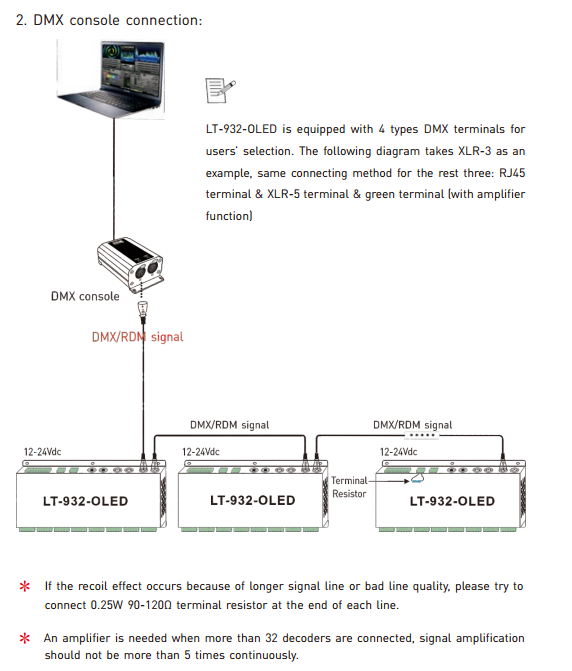

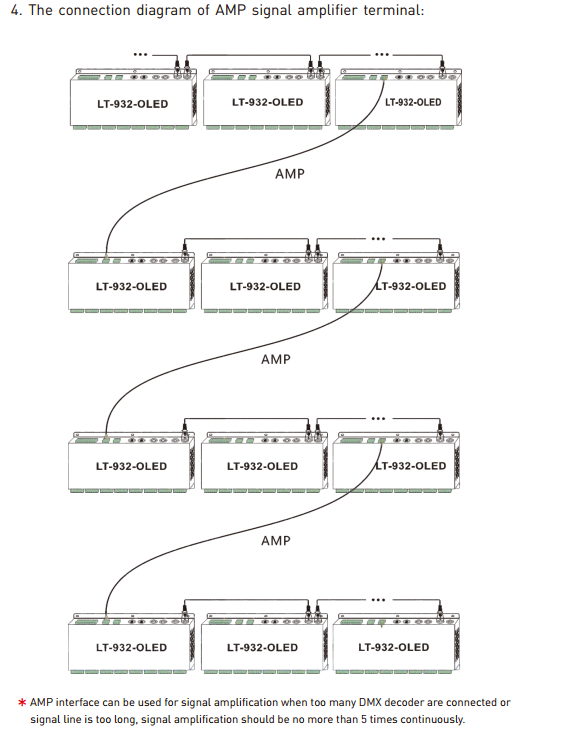

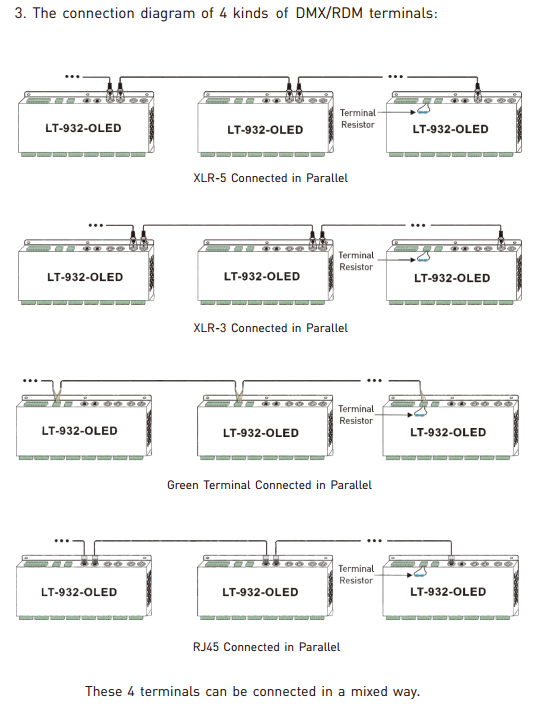

4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).

5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.

6. With photoelectric isolation function.

7. With shortcut protection and over load protection, as well as warning function when fault.

8. With fast self-testing function.

9. 16bit / 8bit resolution optional.

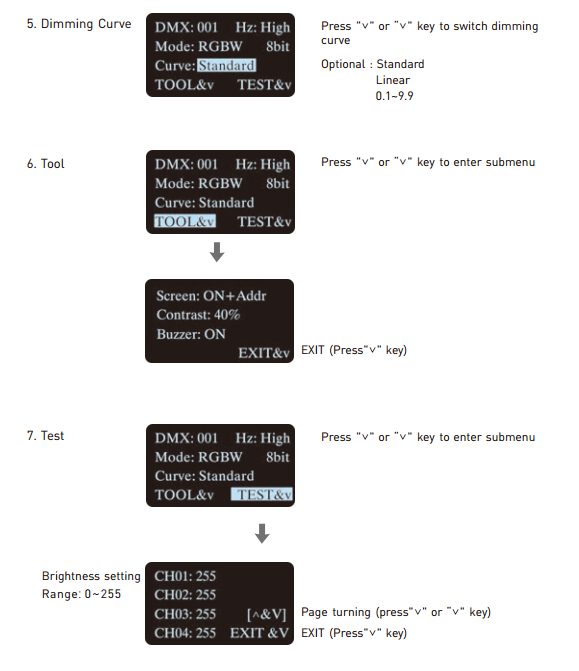

10. Multiple dimming curve (0.1~9.9) optional.

Package Included:

- 1 Piece of 32 Channels DMX Controller Decoder DC 12V 24V LT-932-OLED LTECH

CE and RoHS approved
