DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED,
which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
outstanding performance.
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.

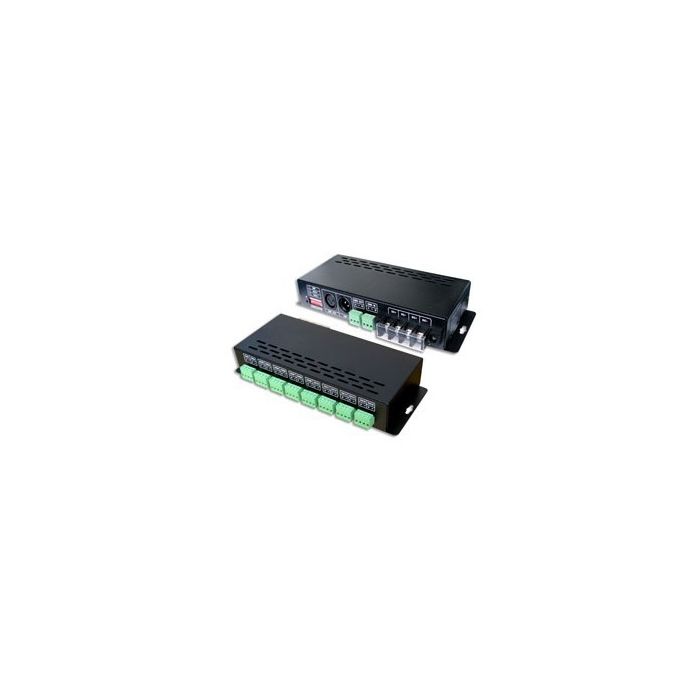

LT-880-350 16CH DMX-PWM Decoder
Input signal DMX512
Input power DC12V~DC48V
Output voltage DC3V~DC42V
Max load current 350mA*16CH
Driving LEDs 1~12 pcs 1W LEDs/CH*16
Gray scale level 256 levels/CH
DMX512 socket XLR-3, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30~65
Dimension L260*W123*H42mm
Package Size L268*W127*H44mm
Weight (G.W) 950g
Package Included:
1 Piece of LTECH LT-880-350 DMX-PWM CC Decoder DC12V~DC48V Input
CE and RoHS approved
