DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED,
which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
outstanding performance.
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.

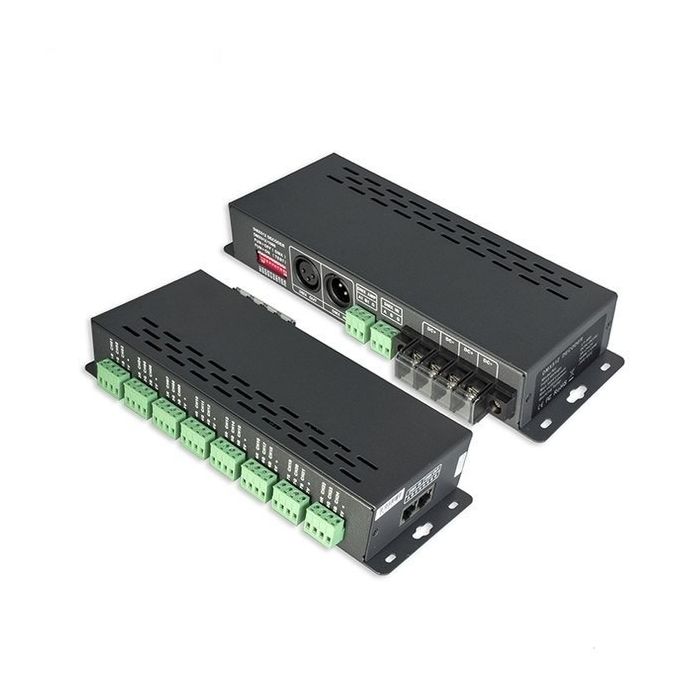

LT-880 24CH DMX-PWM Decoder
Input signal DMX512
Input voltage DC5V~DC24V
Max load current 3A*24CH Max 72A
Max output power 360W/864W/1728W(5V/12V/24V)
Gray scale level 256 levels/CH
DMX512 socket XLR-3, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30~65
Dimension L260×W123×H42mm
Package Size L268×W127×H44mm
Weight (G.W) 860g
Package Included:
1 Piece of LTECH LT-880 24CH DMX CV Decoder Max 48A 1728W Output
CE and RoHS approved
