0-10V, 1-10V LED Dimming Driver
Along with the rise of LED illumination, LED lamps are widely used in hotel, business center, household decoration etc. there are more and more
chances to use LED and fluorescent lights at the same project, if LED lamps and fluorescent lights can be controlled together by a traditional fluorescent
dimming system, it will make everything more convenient, but the dimming principles of LED and traditional fluorescent lights are different, LED lights can
not be dimmed by the fluorescent dimming controller directly.
As a fact of that, our company developed a new 0-10V, 1-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system.
and LED illumination, LED lamps can be controlled by many traditional intelligent dimming system.
NOTE:The CV Dimming Drive and CC Dimming Drive can be connected together on the same dimming
system, which is convenient for controlling different LED lamps with different voltage and power.

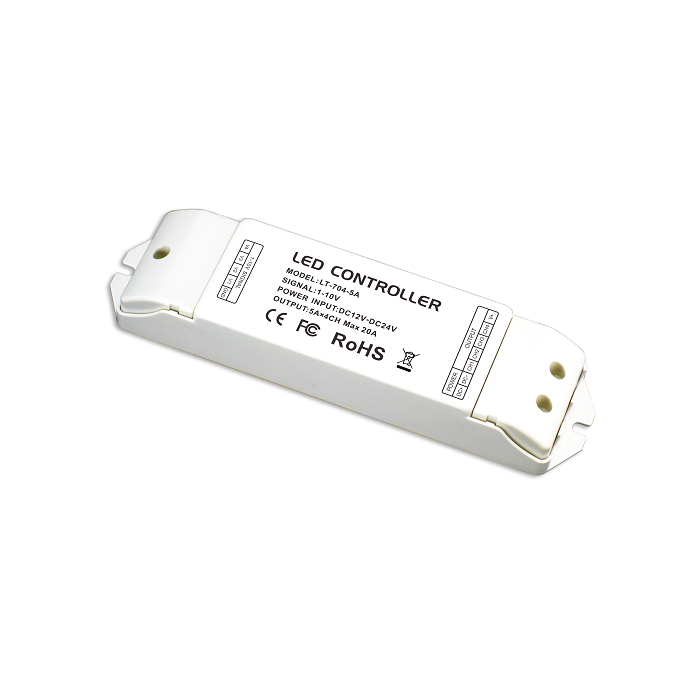

LT-704-5A 4CH CV 0-10V, 1-10V Dimming Driver
Input signal 0-10V, 1-10V, 10V PWM, resistor
Input voltage DC12V~DC24V
Max load current 5A*4CH Max 20A
Max output power 240W/480W(12V/24V)
Dimming Range 0~100%
working temperature -30~55
Dimension L175×W44×H30(mm)
Package Size L178×W48×H33(mm)
Weight (G.W) 125g
Package included :
1 Piece of LTECH LT-704-5A 0/1-10V LED Dimming Driver Input Voltage DC12V~DC24V
CE and RoHS approved
