Product Features
1 Controller collect 5 kinds major function, which reached by previous multiple controllers.
Ethernet real time computer control via synchronous display.
Offline SD card store request programme. Programming,speed and other functions will be seen with
half an eye on the LCD.
Compatible with DMX protocol,connecting DMX console build lighting control network.
supporting WiFi wireless transmission, For special occasions, No need wiring.
Supporting timing display any time. Realize display different programs, No matter on working day or
weekend.
2 Controlling various LED driving chips, the LED lights base on the following IC can be controlled
74HC595,6B595,MBI5026, DM134,ZQ9712,LPD6803,LPD1101,D705,UCS6909,UCS6912, WS2801
WS2803,HL1609,SM16716,,SD600,P9813,LPD8803,LPD8806,LPD8809 ,LPD8812,TLS3001,TLS3002,
TLS3003,TM1803,TM1804,TM1809,TM1812 IC etc.
3 LED lights not only in accordance with the rule of cabling, but also support a variety any cabling's
abnormal lighting project.
4 Extra large control capability,16 channels signal output,max. control 32768 full color pixels per LT-600.
Support network .synchronization of multiple controllers,multiple networked can control max. 250,000
full-color pixels.
5 On-line controlling adopt universal 10/100/1000MBPS network interface, with TCP/IP standard ethernet
protocol, accommodate.to wide range. Reliable communication,support WiFi wireless network
transmission and real-time simultaneous display. Also can.use internet's remote control to achieve real-
time simultaneous display.
6 Adopting advanced image processing technology. Online synchronous play doesn't need to add DVI
display adapter and send cards,any desktop and laptop can control it,convenient for project's
debuggingand demonstration.
7 Adopting the way of network synchronization,synchronous controlling of multiple can be achieved through
network switched.
8 Animation, video files converted generate ultra-fidelity off SD card's read files. ultra-small size, let the time
of request programme longer. And the content more affluent;SD card is easy to play the animation,
either pull down and then use card reader to update, can also be updated remotely via ethernet.
9 Advanced color grey level processing technology,consistent with human eye's visual sensory,display
effect will more vivid, higher brightness, richercolor. Effectively remove the tooth angle produced by the
floating line in video. Show the smooth and natural image.
10 Perfect software function, simple to operate, own video display,support most media format. User can
compile various pictures, texts. Cartoon,video as programme that will be present. Can input any text
display in the process of play. Support viewfinder read the display on screen directly. Breakthroughing the
restrictions to code stream format,play Random format file. Realize split screen display,can divide
screen at will. Switching chinese and english version freely.
Working voltage DC12V
On-line transmission mode
TCP/IP standard internet protocol
Output signal channels 16 Channels
Input&output interface
RJ45
Loading capability per channel above1024 pixels/channel Operating system Windows 2000/2003 /
XP/Vista/win7
Off-line storage media SD memory card The 3th interface DMX512/1990 protocol
SD card capability 2GB Max Product size L197*W120*H47(mm)
Grey level Max 65536 scale Carton Size L250*W125*H88(mm)
Refreshing frequency 60Hz-3000Hz Weight 920g 1350g(G.W)
Package included :

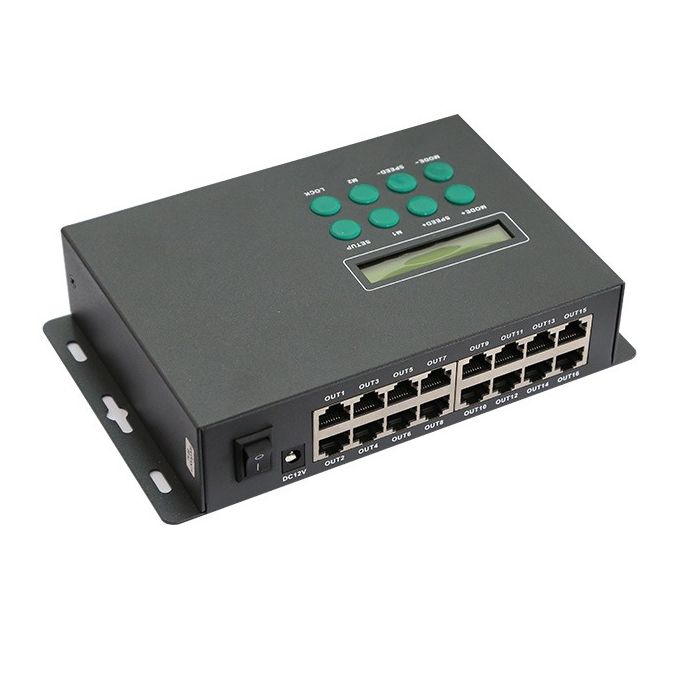

1 Piece of LTECH LT-600 LED Lighting Control System Output Signa16 Channels
CE and RoHS approved
