Platinum Series-Multi function LED Controller
Platinum series LED controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present.
PC engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. Widely controlled for RGB full color LED module, LED strip,
LED SMD tape and all resistance of the current limit LED lighting products.
Performance Features
Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
Can stop at static single color, speed & brightness adjustable at pause status.
Working with power repeater to expand power output unlimitedly.

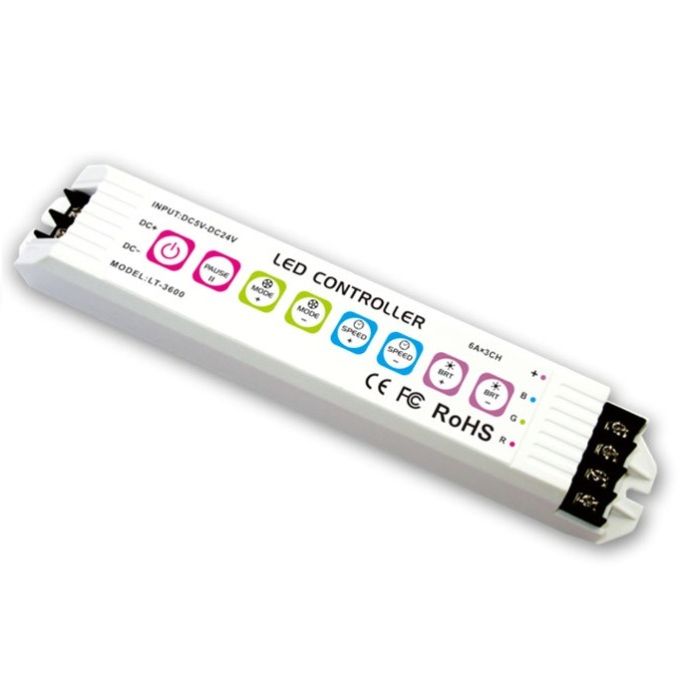

LT-3600
Input voltage DC12V~DC24V
Max current load 6A/CH x3 Max18A
Max output power 216W/432W(12V/24V)
Scale levels 4096×4096×4096
Control button 8 Press buttons
Function Mode 32modes
working temperature -30℃~55℃
Dimension L211×W40×H30(mm)
Package Size L215×W43×H33(mm)
Weight (G.W) 160g
Package Include:
1 Piece of LTECH LT-3600 Common Anode LED RGB Controller DC5-24V Input
CE and RoHS approved
