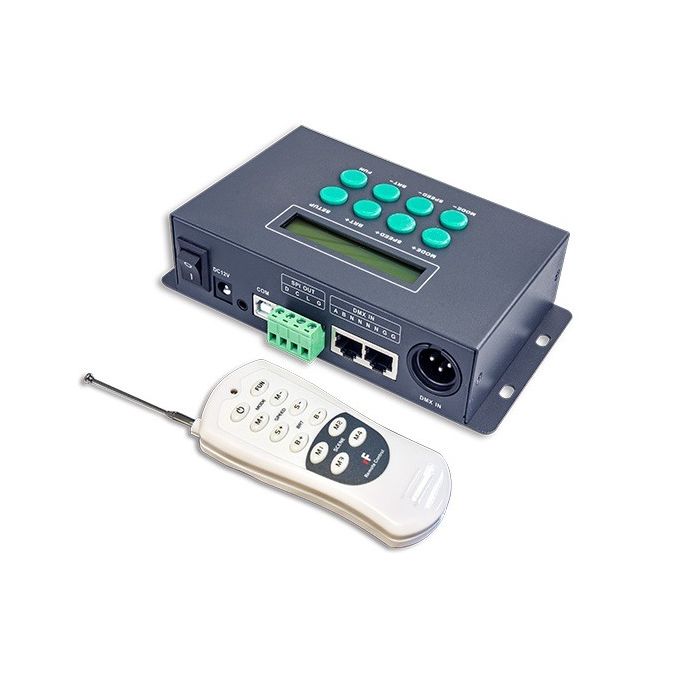

LT-200 LED Digital Controller;SPI signal output,1024 pixels controlled;can work with dmx console,also can as a DMX-SPI decoder
Brief introduction
More powerful and easy operation in LT-200 digital controller updated version.
It can control LED lighting with compatible driving IC, such as PD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809,
TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, P9813, etc
There are 540 lighting modes, like seven color, synchronic jumping and smooth, color flow, color chasing, smooth flow, Meteor, etc.
LED digital control was supported by DMX/1990 international standard protocol interface which has DMX management mode. It can choose the changing modes,
changing speed, brightness, changing category, changing direction by calling LT-200 built-in function through DMX console.
Meanwhile, it also has the DMX decoder mode that user is the most wanted. It can edit and control the led fixtures with those driving ICs listed above.
DMX console control every channel of the LED fixtures, realizing 0-100% dimming or editing kinds of changing effect.
Can customize the other compatible driving ICs by customer needs
Performance Features
1. Built-in a LCD screen, it is easy to set up the parameters.
2.Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or
holiday.
3. There are 540 lighting modes, like seven colors, synchronic jumping and smooth, color flow, color chasing, smooth flow, meteor
trailing, etc..
4. Multilevel changing speed, brightness, RGB gray scale adjustment, effect of movement direction, etc. .
5. Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
6. Support 4 kinds of output ports: XLR-3, RJ45 and green terminals. It can be load 20A current by combination the terminal of signal and
power
7. Support third-party DMX512 interface, it can be realized DMX management mode, calling the most of functionality in the controller by
DMX console.
8. It can be work as a DMX-SPI decoder, which decode 512 channels and programming the changing effect by DMX console.
Product Parameter
LT-200 Led digital controller
Working Voltage DC12V (with an adapter to covert AC100-240V to DC12V )
Power consumption above2W
Output signal SPI(TTL)
3rd part port DMX512/1990
Change mode 540 modes
Control pixels 1024 pixels
Output terminal XLR-3, RJ45, Green terminal, combination the terminal of signal and power
working temperature -30-65
Control Qty 1024 pixels
Dimension L163×W125×H40mm
Package Size L269×W129×H46mm
Weight (G.W) 760g
Package included :
1 Piece of LTECH LT-200 SPI Signal Output 1024 Pixels Controlled Can With Dmx Console
CE and RoHS approved
