LT-123 is dedicated to amplify, distribute, and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512.
1. It's specially designed for signal shaping amplification for DMX512 signal which attenuated after a
long-distance transmission, realize extending the signal transmission distance;
2.Need to use the multiple signals expansion output control , increase DMX l signal amplifier to distribute
multi-channel control.
3. 1 channel input, 3 channels distributed output, there is a independently photoelectricity insulation of 5KV
between Input and output terminals, and output terminals among 3 channels , so as to avoid the expensive
equipment such as light ,DMX driver, precise digital lighting controller, being burnt by the possible high
voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal
interference between each DMX equipment, to assure it works safely.
Input voltage DC12V (mated power supply adaptor)
Input DMX signal 1 CH (photoelectricity isolation 5kv)
Output DMX signal 3 CH (photoelectricity isolation 5kv)
DMX512 socket: XLR-3 plug/European style terminal
working temperature -30~65
Dimension L192×W80×H41mm
Package Size L270×W90×H46mm
Weight (G.W) 563g
Package Included:

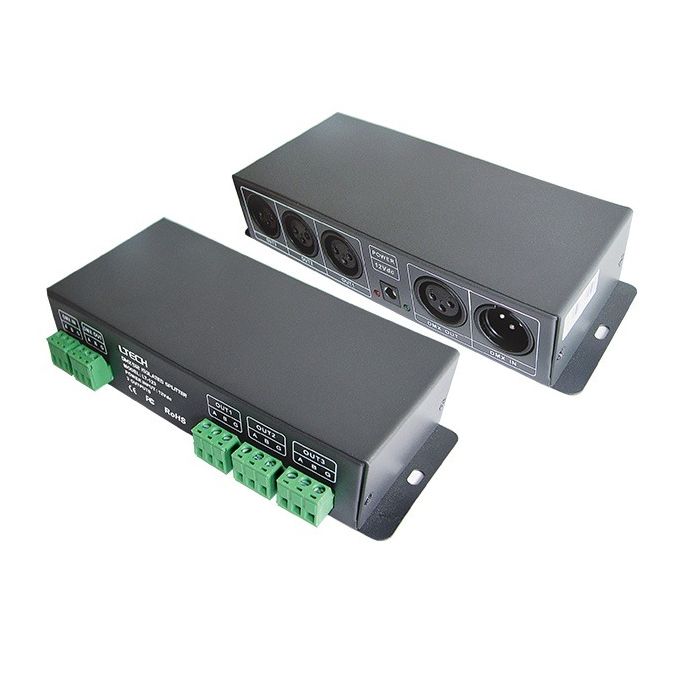

1 Piece of LTECH LT-123 DMX Signal Amplifier DMX512 Signal DC12-24V Input
CE and RoHS approved
