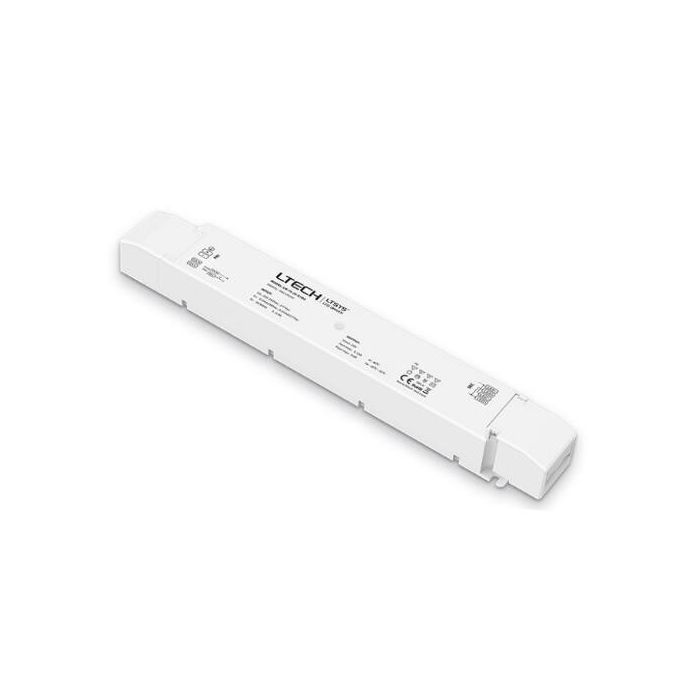

Ltech LM-75-24-G1D2 LED DALI CV Dimming Driver 75W 24Vdc

Be the first to review this product

A$46.86

In stock

SKU

Ltech LM-75-24-G1D2 LED DALI CV Dimming Driver

Buy 100 for A$45.21 each and save 4%
Buy 300 for A$43.55 each and save 7%

Ltech LM-75-24-G1D2 LED DALI CV Dimming Driver 75W 24Vdc is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com

Agodx.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

LTECH Intelligent dimmable led driver have excellent performance:

Fully Digital circuit design, excellent performance and long working life

PWM digital dimming, maintain the best LED’s CRI(color rendering index)

DALI bus standard: IEC62386，standard DALI logarithmic dimming curve

60000:1 wide dimming range, 0-100% full dimming range，LED start at 0.1% possible

Power factor>0.99, Efficiency>86%, THD(Total Harmonic Distortion)<10%

Short circuit / Over-temperature / Over load protection

Current consistent in multi LED driver working, balanced light

Class 2 security isolation power supply

Compliant with SELV(Safety Extra Low Voltage) standard

Technical Specs:

LM-75-24-G1D2

Dimming Interface: DALI (IEC62386), Push Dim

Dimming Range: 0~100%, LED start at 0.1% possible.

Input Voltage Range: 200-240Vac, 277Vac (for North America only)

Power Factor: PF>0.96/230Vac , PF>0.95/277Vac, at full load

Efficiency: >91.5%

Output Voltage Range: 24Vdc ±0.5Vdc

Output Power Range: 1~75W

Output Current: Max. 3.12A

Working Temperature.: tc: 80℃ ta: -30 ~ 55℃

Dimension: 292×43×30mm(L×W×H)

Packing: 296×44×33mm(L×W×H)

Weight(G.W.): 300g±10g 75W 24V DC CV DALI Driver DALI Series

Package Content:

1 Piece of LM-75-24-G1D2 CV DALI Dimmable Driver

1 Piece of Manual

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_1

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_2

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_3

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_4

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_5

LTECH_CV_DALI_Dimmable_Driver_LM_75_24_G1D2_6

CE and RoHS approved
