Summary
1.Rotary panel 0-10V dimmer, can also be used as dimming RF remote.
2.Output 1 channel 0-10V signal, connect with 0/1-10V dimmable driver.
3.High voltage AC input, High voltage AC relay output.
4.Rotate knob to change brightness, support push and long push operation.
5.Smooth dimming and switch without any flickering.
6.Great compatibility with a variety of dimming RF remote.
7.Adopt 2.4GHz wireless technology, remote distance up to 30m, one dimmer can accept up to 10 remote control.
8.Work with WiFi-relay controller after install APP on IOS and Android system.
Technical parameter
1.Input voltage: AC85-265V
2.Output voltage: AC85-265V
3.Output current: Max 3A
4.Output signal: 0-10V(20mA)
5.Static power: <1W
6.Remote distance: 30m
7.Work temperature: -30℃~55℃
8.Product size: L86×W86×H48.5mm
Package Include:

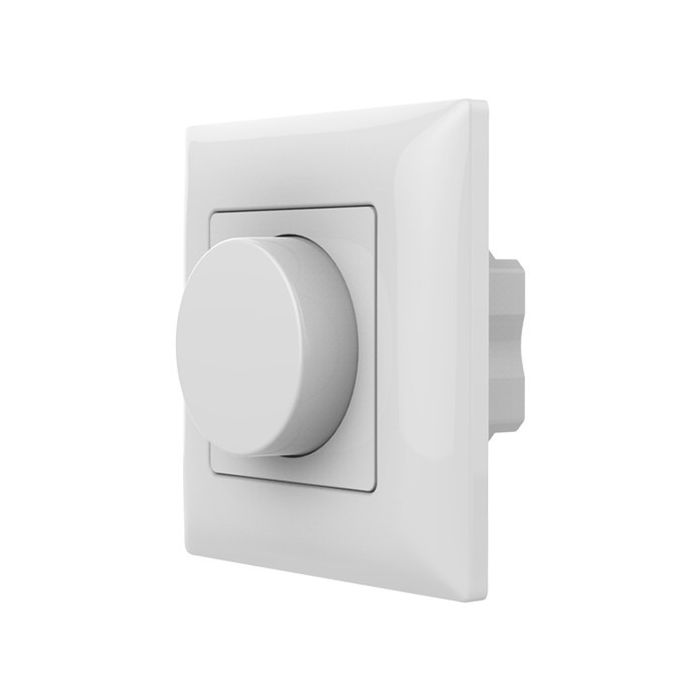

1 Piece of Skydance 0-10V Rotary Panel Constant Voltage LED Dimmer KL AC 85-265V
1 Piece of User's Manual
CE and RoHS approved
