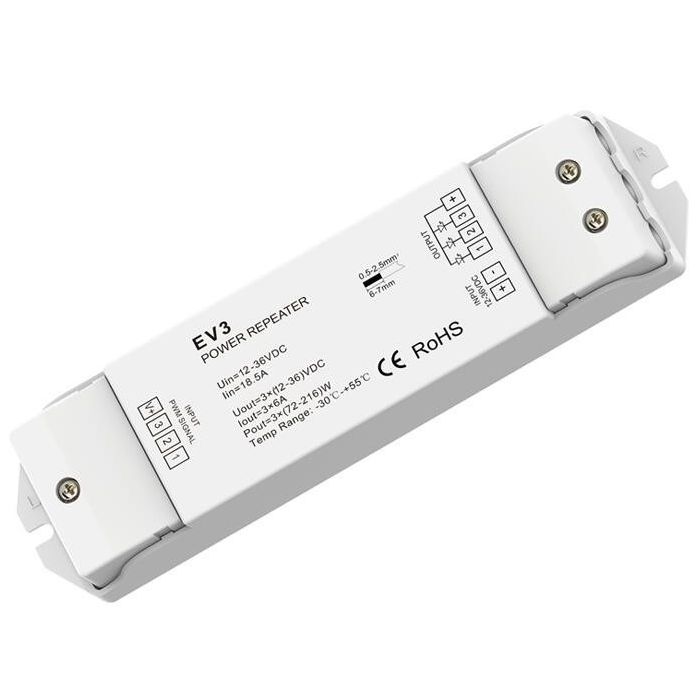

The EV3 is a 12-36VDC constant voltage LED power repeater with 3 channel, maximum 6A per channel output,
which is designed to expand power output and receive PWM signal control. By adding one more power repeater,
the controller can control more LEDs, and unlimited power repeaters can be connected together to expand power output unlimitedly theoretically
Feature
1.12-36V constant voltage power repeater.
2.3 channel, 6A per channel.
3.To receive PWM signal control.
4.Power repeater in series or in parallel to expand output unlimitedly.
Technical Parameters
Input voltage: 12-36VDC
Load current: 3CH, 6A/CH
Output power: 3 x (72-216)W
Working temperature: -30℃~55℃
Product size: L175×W45×H27mm
Net weight: 110g
Package Included:
1 Piece of Skydance EV3 CV 3CH*6A DC 12-36V Power Repeater
1 Piece of User's Manual
CE and RoHS approved
