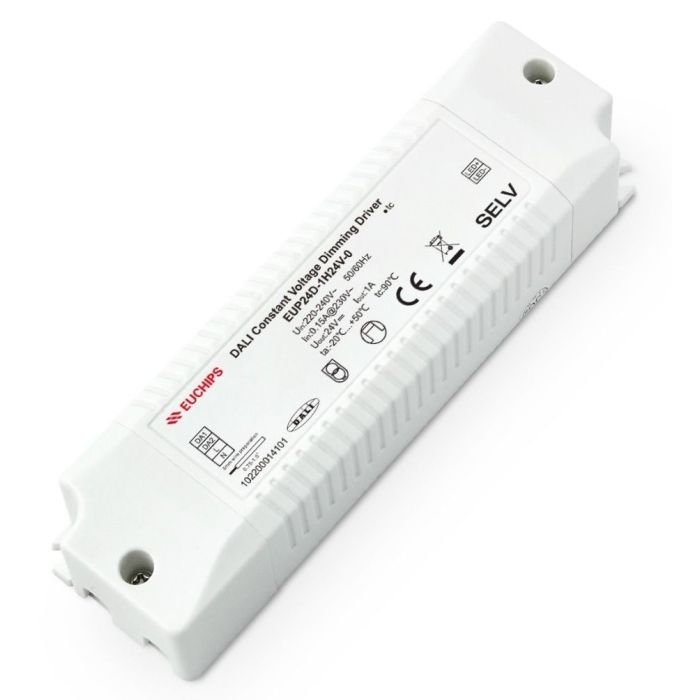

24W 1A*1ch DALI Constant Voltage LED Driver EUP24D-1H24V-0
EUP24D-1H24V-0 is a constant voltage mode output LED driver and complies
with DALI standard protocol IEC62386. This driver can be connected to DALI
main controller or Touch DIM to achieve a smooth dimming effect.
Short Description:
Item No.:EUP24D-1H24V-0
Input Voltage:220-240VAC
Output Current:1A*1CH
Output Voltage:24VDC
Output Power:24W
Dim Mode:Touch DIM
G.W.:150g
Size:150*43*29mm
Feature
1. Single channel constant voltage output, 1A Max
2. Meet DALI protocol IEC 62386
3. Support Touch DIM function
4. Dimming effect smooth, no flicker
5. Over load protection; over temperature protection, short circuit protection
6. IP20, suitable for indoor LED lighting
Package Included:
1 Piece of EUP24D-1H24V-0 Euchips DALI CV Touch DIM 24W 24V Led Driver
1 Piece of User's Manual
CE and RoHS approved
