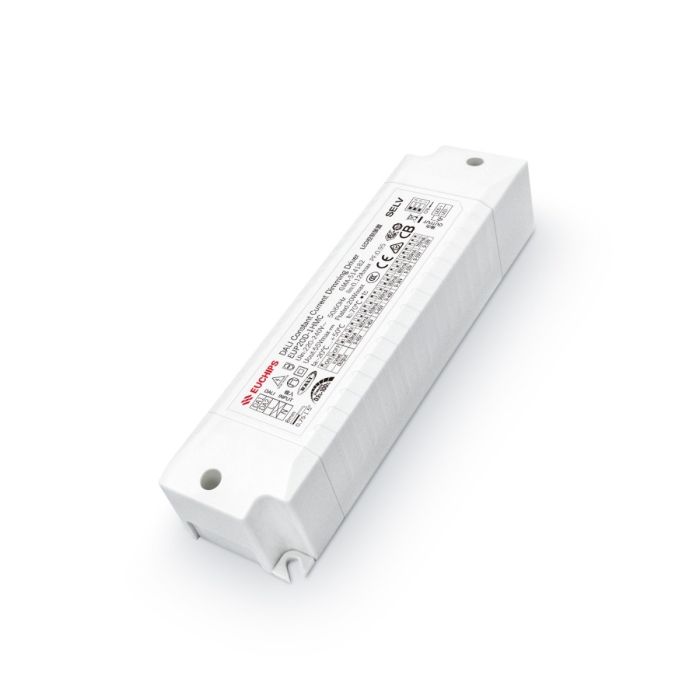

20W Constant Current DALI-2 Driver EUP20D-1HMC
EUP20D-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels
selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP20D-1HMC can be
connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Short Description:
Item No.:EUP20D-1HMC
Input Voltage:220VAC-240VAC
Output Power:20W
Dim Mode:DALI
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 ed2.0
3. Support Touch-DIM function
4. High efficiency up to 85%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over Voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Package Include:
1 Piece of EUP20D-1HMC Euchips 20W 350mA 700mA 1ch DALI CC LED Driver
1 Piece of Product's Manual
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in
a water proof enclosure.
3.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75- 1.5mm² is recommended for input and output
terminal(s)(excluding signal terminals). Flat power cord is not suitable.Ensure all wire
connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
CE and RoHS approved
