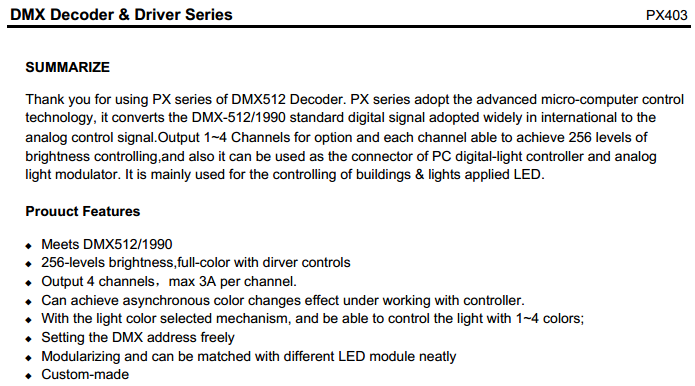

Summarize
DMX512 Decoder XD3-41200-RJ adopt the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.
Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling, and also it can be used as the connector of PC digital-light controller and analog light modulator.
It is mainly used for the controlling of buildings & lights applied LED.
Feature
1. Meets DMX512/1990
2. 256-levels brightness,full-color with dirver controls
3. Output 4 channels, max 3A per channel
4. Can achieve asynchronous color changes effect under working with controller
5. With the light color selected mechanism, and be able to control the light with 1~4 colors
6. Setting the DMX address freely
7. Modularizing and can be matched with different LED module neatly
Package included:

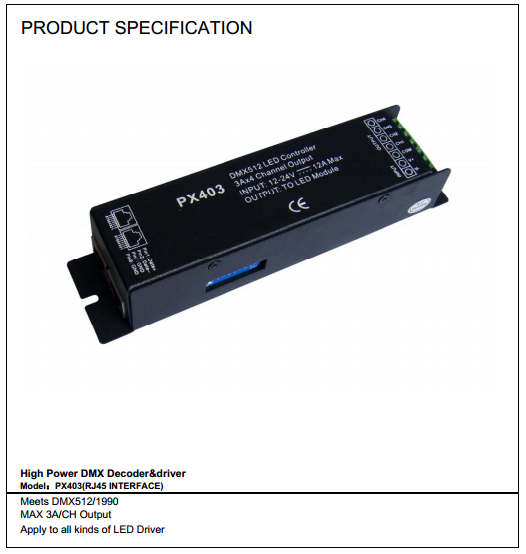

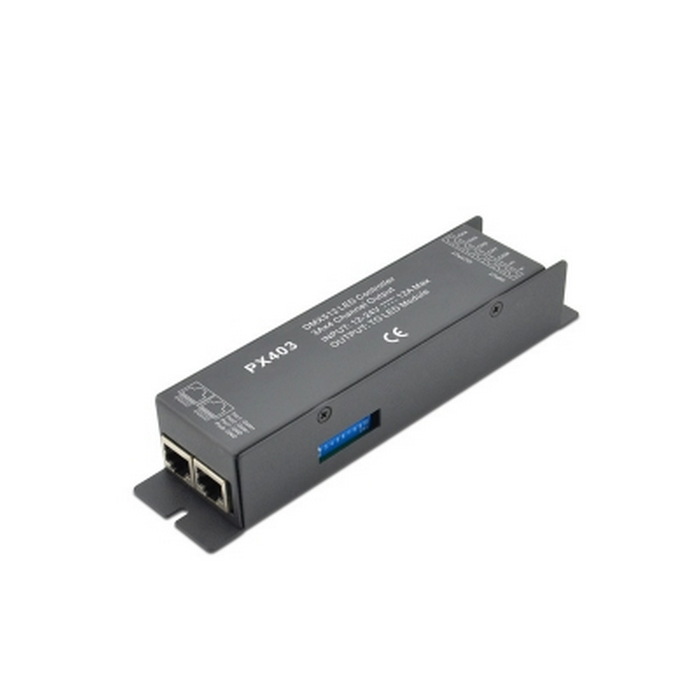

1 Piece of Euchips PX403 Constant Voltage 12A LED RGBW DMX Decoder Controller
1 Piece of User's Manual
CE and RoHS approved
