Short Description:
Item No.:PX24608
Input Voltage:24
Output Current:20mA*4CH
Output Voltage:0-10V
Dim Mode:DMX512(1990)
G.W.:300
Size:175*40*33
Summarize
Thank you for using PX series of DMX512 Decoder. PX series adopt the advanced micro-computer control?technology, it converts the
DMX-512/1990 standard digital signal adopted widely in international to 0-10V/1-10V signal.4 Channels output, output driver 20 mA
per channel.it can be used to control?0-10V/1-10V dimmer. It is mainly used for signal convert betwwen DMX Master and 0-10V/1-10V(DMX to 1-10V Converter)
Dimmer.
Feature
1. Meet the DMX512 international standard treaty
2. 0-10V/1-10V analog signal output
3. 4 channels output, output driver 20mA per channel
4. Match the controll system, can achieve various changing effects
5. With the lamp color selected mechanism, and be able to control the lamp with 1~4 colors;
6. Can set the lamp DMX address freely
7. Modularizing and can be matched with different LED module neatly
Package Include:

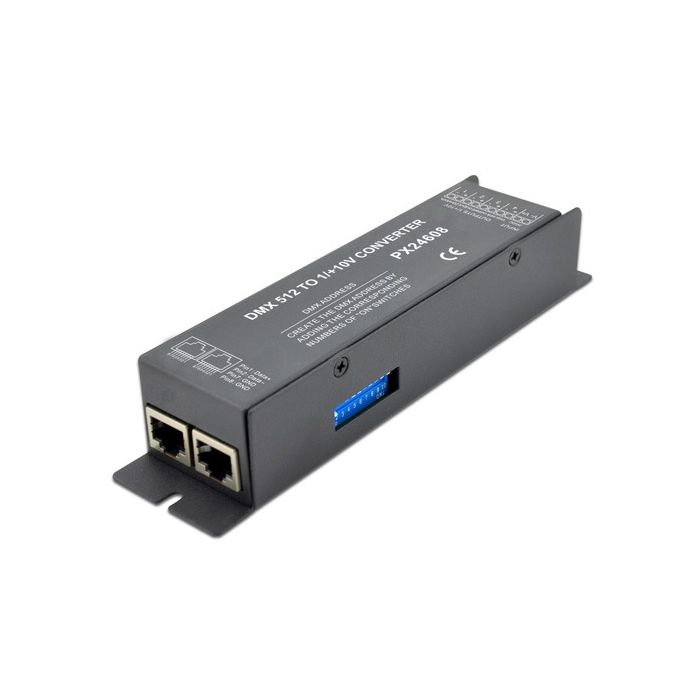

1 Piece of Euchips PX24608 24V DC 20mA 4ch DMX to 0-10V Analog Signal Converter
1 Piece of Product's Manual
CE and RoHS approved
