Also this item is named "DMX512 PX24506 Decoder Driver 9A DMX 512 Amplifier 12V 24V RGB LED Lights"
It is easy and popular to use PX series DMX512 decoder & driver. PX series adopt the advanced micro-computer control technology and converted the
DMX512/1990 digital signal widely used in international to the analog control signal. 1~3 channels output for option and each channel able to achieve
256 gradations of controling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the
controlling of buildings & lights applied LED.

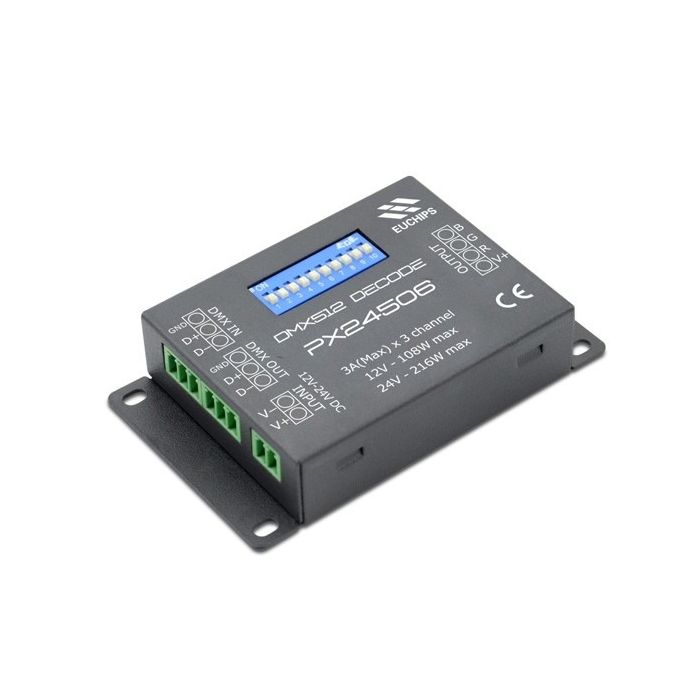

DMX512/1990 Decoder / Driver (PX24506)
Decode Channel : 3 Channels
Max. Output Current: 9A (3A x3)
Input Signal : DMX-512/1990 digital signal
Power Supply: DC12-24V
Power Consumption :>1W
Power Output :12V:108W, 24V:216W
Operating Temperature : 0~50 degree
Size: approx L86 x W51 x H17.8mm
Weight: approx 110g
256-level brightness and full-color control
It has 3 channels output, Max.3A/CH
With a control system, it can make a variety of effects
It can set the DMX address freely
Welcome to use PX series DMX512 decoder & driver. PX series converted the DMX512/1990 digital signal widely used in international to the analog control signal.
1~3 channels output for option and each channel is able to achieve 256 gradations of controling, and also it can be used as the connector of PC digital light controller
and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

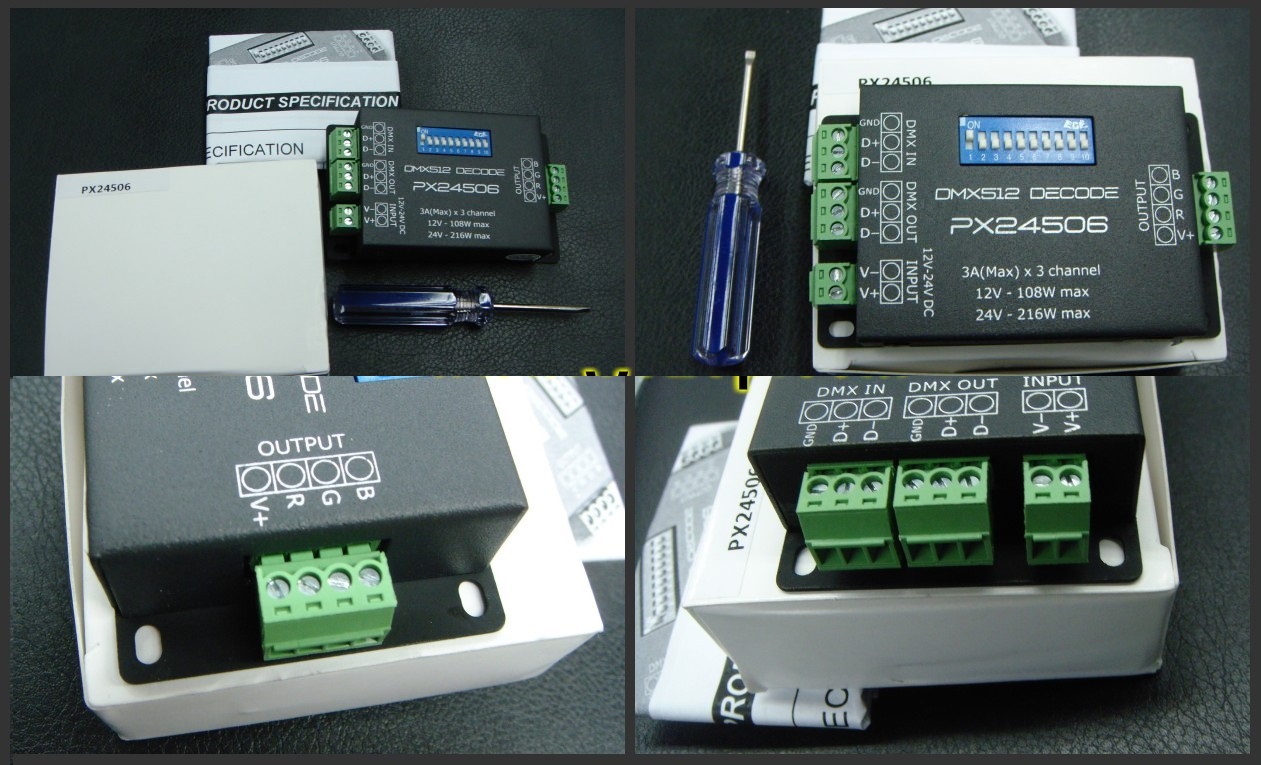

Package included:
1 x PX24506 3A*3 Channels DMX Constant Voltage Decorder for RGB Light
1 x small slot-head screw driver
1 x User Manual
Features
Meets DMX512/1990
256-level brightness,full-color control
With 3 channels output and Max.3A/CH output
With control system,can express perfect effect
With the light color selected mechanism, and be able to control the light with 1~3 colors
Can set the DMX address freely
We also have the small slot-head screw driver in following cool black style, we will send according to our stock information. If you require certain color of screw driver,
pls contact us after you place order, thanks for your support:
CE and RoHS approved
