Short Description:
Item No.:EUP40A-2HMC
Input Voltage:220-240VAC
Output Current:750/800/850/900/950/1000/1050/1100mA
Output Voltage:9-45VDC
Output Power:40W
Dim Mode:0/1-10V
G.W.:151g
Size:185*42.5*28.5mm

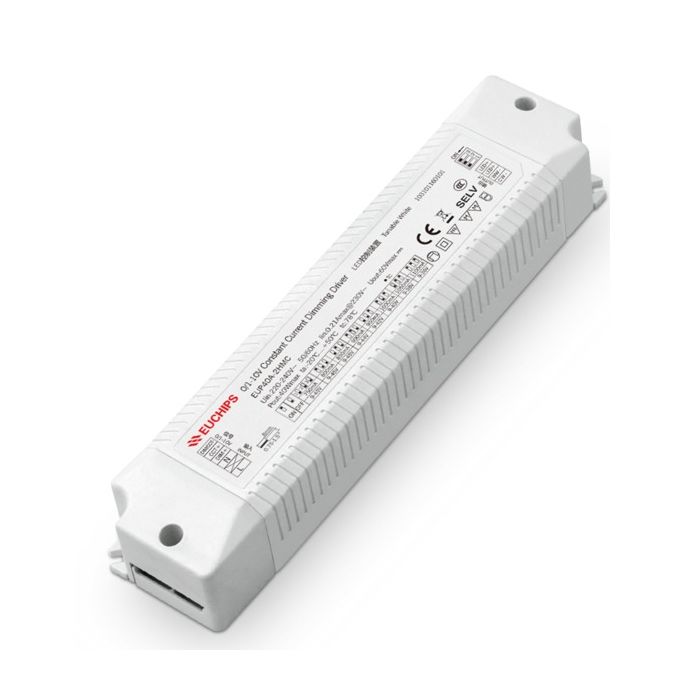

EUP40A-2HMC is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.
Features
Two channel output, output current level selectable by DIP S.W.
High efficiency up to 88 %
Built-in active PFC function
Protections: Short circuit, over load, over Voltage
Suitable for indoor LED lighting application, such as down light, panel light, and so on
Package Include:
1 Piece of Euchips EUP40A-2HMC 40W 750-1100mA 2ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
