Short Description:
Item No.:EUP30A-1HMC-1
Output Power:30W
Size:150*43*29mm

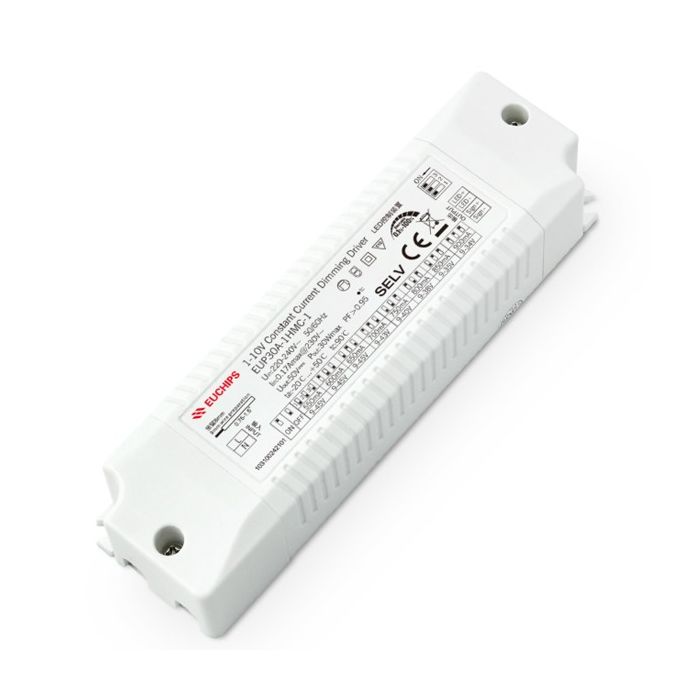

EUP30A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch,
and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve
the smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 87%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, Over Load, Over Temperature
9. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on.
Package Include:
1 Piece of Euchips EUP30A-1HMC-1 30W 550-900mA 1ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
