Short Description:
Item No.:EUP20A-2HMC
Input Voltage:220-240VAC
Output Current:350/400/450/500/550/600/650/700mA
Output Voltage:9-42VDC
Output Power:20W
Dim Mode:0/1-10V
G.W.:110g
Size:150*43*29mm

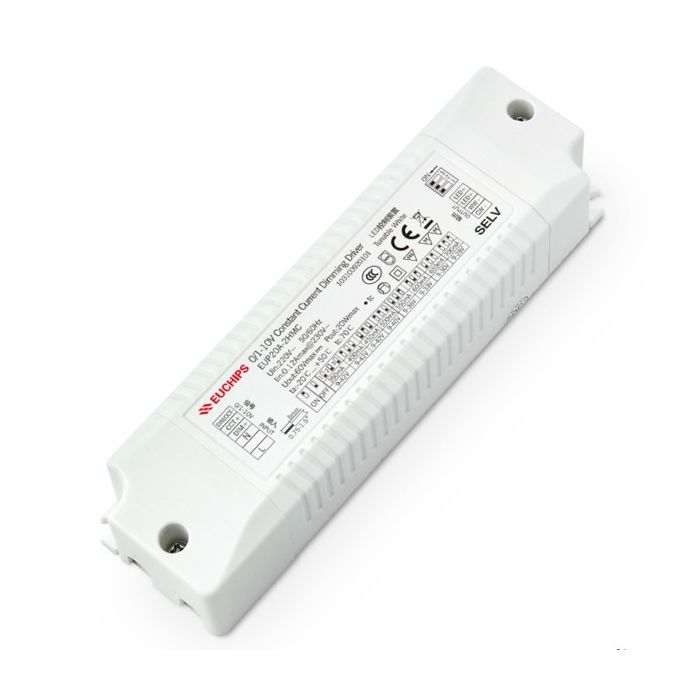

EUP20A-2HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.
Features
Two channel output, output current level selectable by DIP S.W.
High efficiency up to 85 %
Built-in active PFC function
Protections: Short circuit, over load, over Voltage
Suitable for indoor LED lighting application, such as down light, panel light, and so on
Package Include:
1 Piece of Euchips EUP20A-2HMC 20W 350-700mA 2ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
