Short Description:

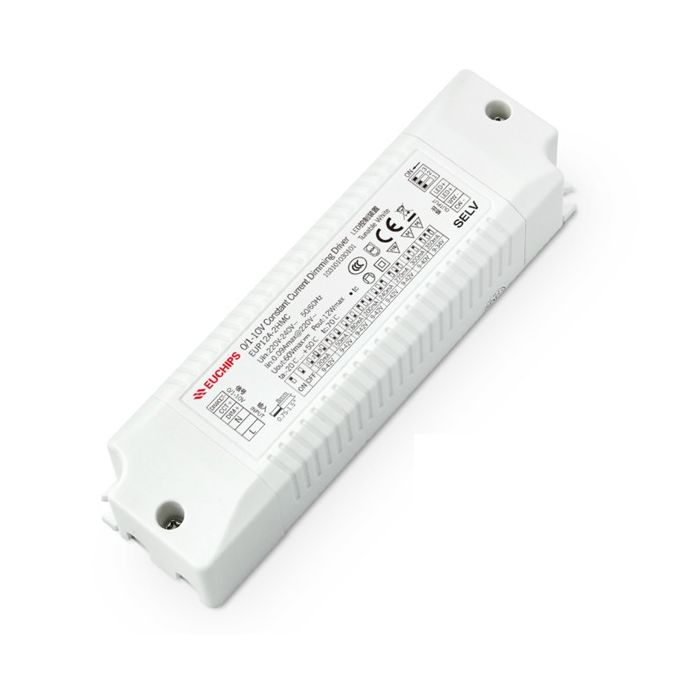

Item No.:EUP12A-2HMC
Input Voltage:220-240VAC
Output Current:120/150/180/200/240/ 270/300/350mA
Output Voltage:9-42VDC
Output Power:12W
Dim Mode:0/1-10V
G.W.:110g
Size:150*43*29mm
UP12Z-2HMC is an LED driver that can provide 120 / 150 / 180, 200 / 240, 270 / 300 / 350 ma current.
The output current can be set through the DP dip switch profile to achieve
wireless dimming and color matching through ZigBee.
Features
1. Two channel output, output current level selectable by DIP S.W.
2. High efficiency up to 85 %
3. Built-in active PFC function
4. Protections: Short circuit, over load, over Voltage
5. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Package Include:
1 Piece of Euchips EUP12A-2HMC 12W 120-350mA 2ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
