Short Description:

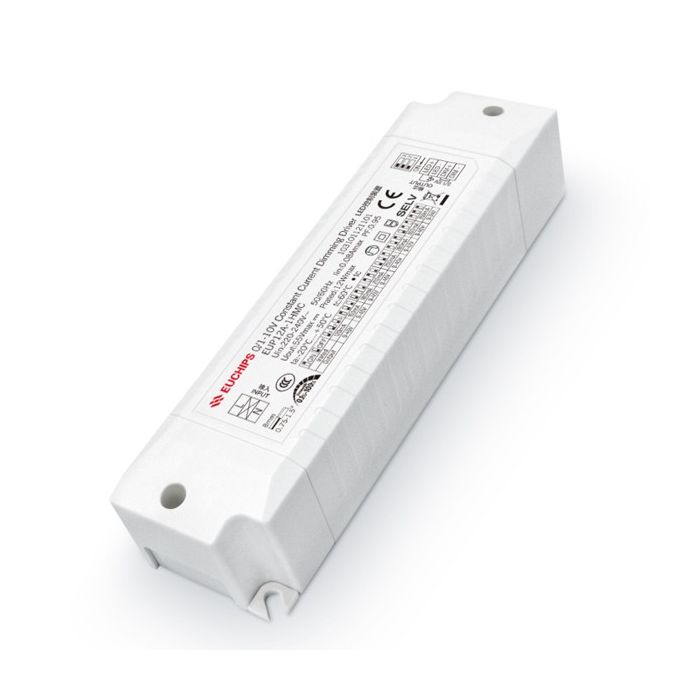

Item No.:EUP12A-1HMC
Output Power:12W
EUP12A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted
by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
Single channel output, output current level selectable by DIP S.W.
Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
High input voltage of 220VAC ~ 240VAC
High efficiency up to 84%
Built-in active PFC function
100% output when no dimming signal input, can be used as normal power supply
Dimming effect smooth, no flicker
Protections: Short circuit, over load, Over Voltage
Suitable for indoor LED lighting application, such as down light, spot light, and so on
Package Include:
1 Piece of Euchips EUP12A-1HMC12W 120-350mA 1ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
