Short Description:
Item No.:EUP10A-1HMC-1-120
Output Power:10W

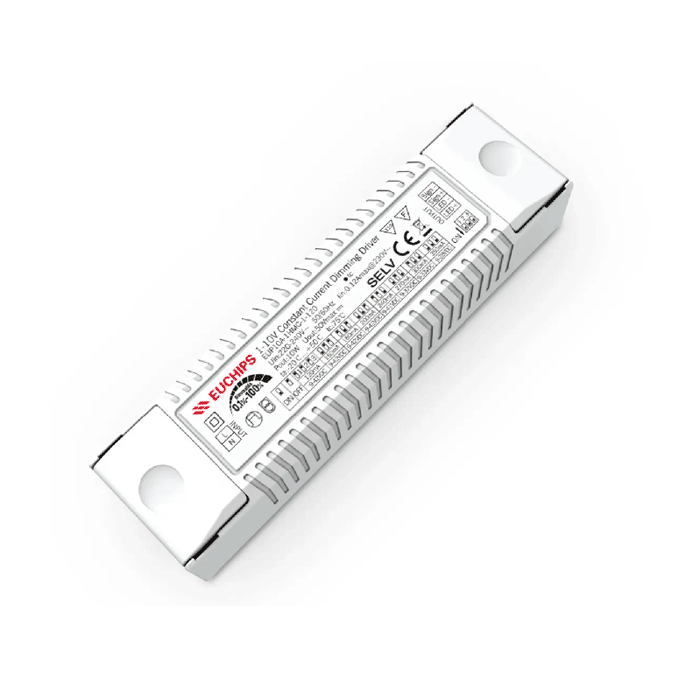

EUP10A-1HMC-1-120 is a constant current output mode LED driver. The output current can be easily set via DIP switch,
and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal,
or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 75%
5. 100% output when no dimming signal input, can be used as normal power supply
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Package Include:
1 Piece of Euchips EUP10A-1HMC-1-120 10W 120-350mA 1ch 0/1-10V CC Driver
1 Piece of Product's Manual
CE and RoHS approved
