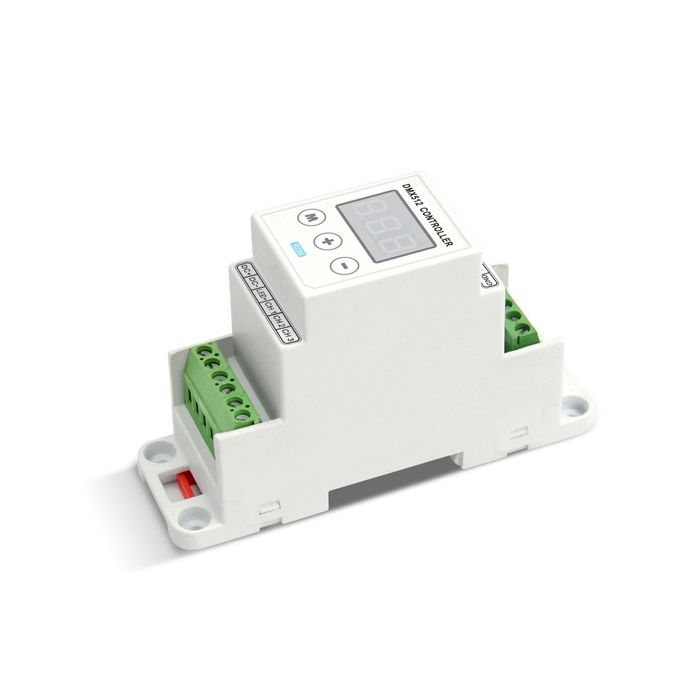

Euchips DIM101M-DIN 5A 3ch 12-24V DC CV DMX Decoder

A$25.72
In stock
SKU
Euchips DIM101M-DIN 5A 3ch 12-24V DC CV DMX Decoder
  • Buy 50 for A$24.72 each and save 4%

Euchips DIM101M-DIN 5A 3ch 12-24V DC CV DMX Decoder is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@agodx.com

Agodx.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

Short Description:

Item No.:DIM101M-DIN

Input Voltage:12-24

Output Current:5A*3CH

Output Voltage:12-24

Output Power:180-360

Dim Mode:DMX512

G.W.:120

Size:112*35*67

Feature

Meet DMX512 (1990)/RDM (2009) Protocol.

3 channels PWM output, the max current of each channel up to 5A

With the light color selected mechanism, and be able to control the light with 1-3 colors

DMX address can be set manually by button or RDM master if it works on RDM mode.

DC power supply

Support over current protection, short circuit protection function

Package Include:

1 Piece of Euchips DIM101M-DIN 5A 3ch 12-24V DC CV DMX Decoder

1 Piece of Product's Manual

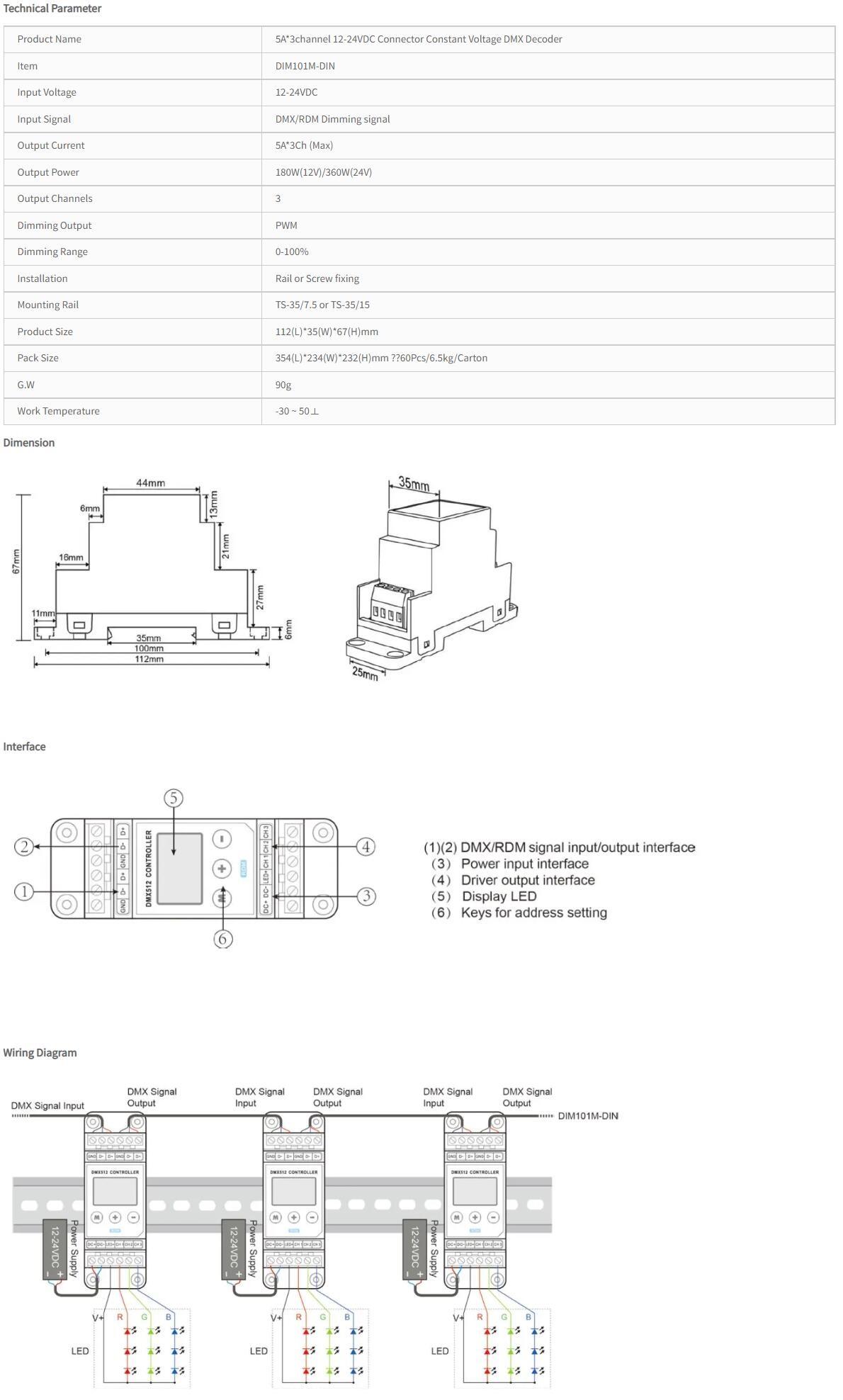

Euchips_DIM101M_DIN_1

CE and RoHS approved

Processing Shipping & Tracking

Mostly the parcel will be shipped within around 1 to 2 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. service@agodx.com

Our website is very easy to use, the shipping fee base on the weight of the products. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.

All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to worldwide with tracking number.
