Features

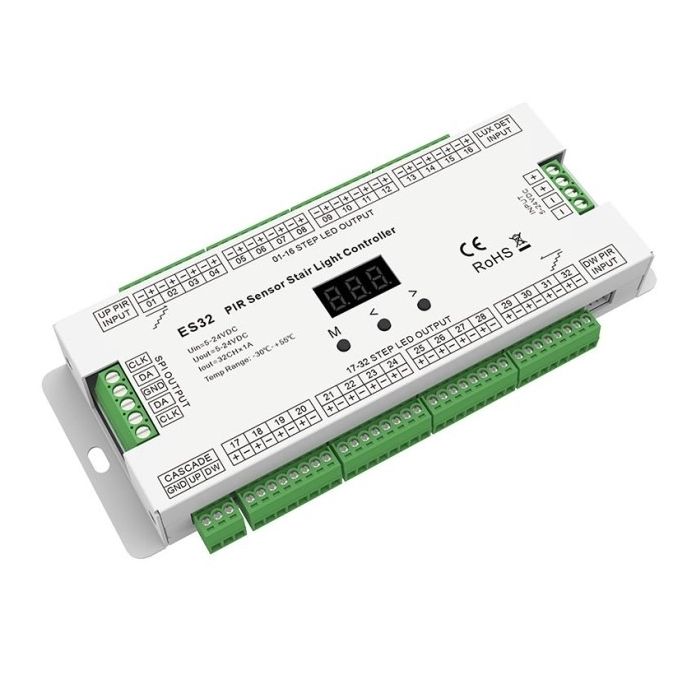

Model No.: ES32
Multiple function PIR sensor stair light controller with daylight sensor.
32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803, LPD1101,
D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.
Easy operation with OLED display and 3 buttons.
four work light mode selectable.
Two stair light controller can cascade.
Built-in multiple color mode, speed 1-8 grade adjustable.
Push switch can also be as induction signal input.
With fast self-testing function.
Package Included:
1 Piece of Skydance ES32 LED Controller
1 Piece of User's Manual
CE and RoHS approved
