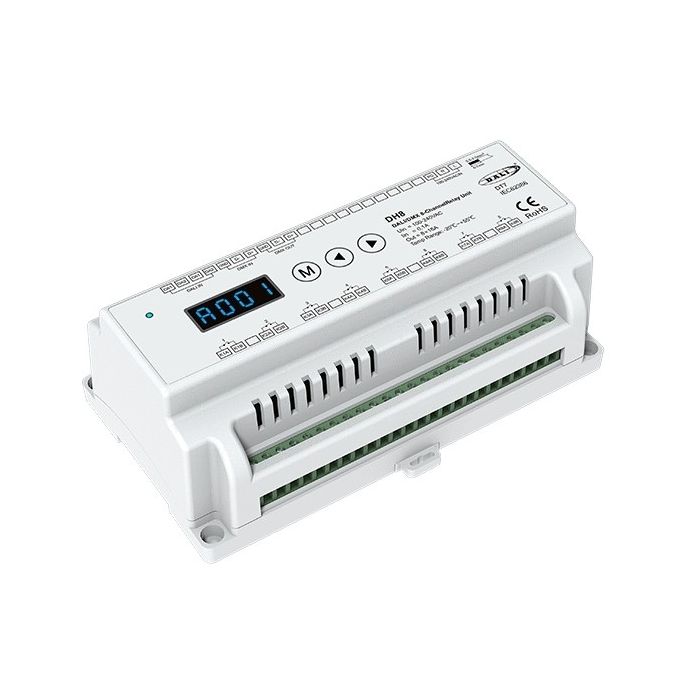

DH8
DALI/DMX 8-Channel Relay Unit
Three operating modes: DALI mode, DMX mode and manual mode.
LED segment display and 3 button operation.
Compliant DALI device type 7, DALI-2 certified, in accordance
with DALI standard protocol IEC 62386-101,102, 208 and in compliance
with DALI products from other international incorporation.
DALI address can be manually assigned and shown in digital display or
automatically assigned by DALI master.
Comply with the DMX512 standard protocols, support RDM function.
Support manual switch.
High-inrush specification relays (single pole, normally open).
Zero cross switching function, 8 independently output channels.
Can operate as:
8 individual channels (8 × 1)
4 sets of 2 channels (4 × 2)
2 sets of 4 channels (2 × 4)
Package Include:
1 Piece of DH8 DT7 8CH 16A Skydance DALI DMX 8-Channel Relay Unit Led Controller 100-240V AC
1 Piece of Product Manual
CE and RoHS approved
