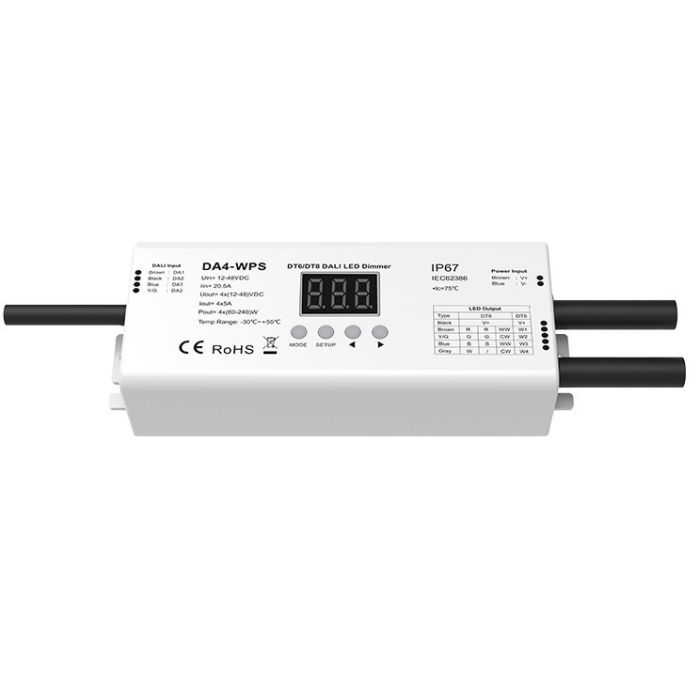

Waterproof 4 Channel Constant Voltage DALI LED Dimmer
Model NO.: DA4-WPS
DT6 or DT8 selectable / Constant Voltage / 1-4 DALI address / 4 Channel
/ PWM dimming /Numeric display
Features
4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
1-4 DALI address, 4 channel work separately.
In accordance with DALI standard protocol IEC 62386-102,
IEC 62386-207, IEC 62386-209 and in compliance
with DALI products from other international incorporation.
DT6 dimming or DT8-TC color temperature or DT8-RGB or
DT8-RGBW light type selectable.
DALI address can be manually assigned and shown in digital display or
automatically assigned by DALI master.
PWM digital dimming, standard DALI logarithmic dimming curve.
PWM frequency 1000/2000/4000/8000Hz selectable.
With fast self-testing function.
Over-heat / Short circuit protection, recover automatically.
Package Include:
1 Piece of DA4-WPS Skydance Led Controller 4CH 5A 12-48V DC IP67 CV DT6 DT8 DALI Dimmer
1 Piece of Product Manual
CE and RoHS approved
