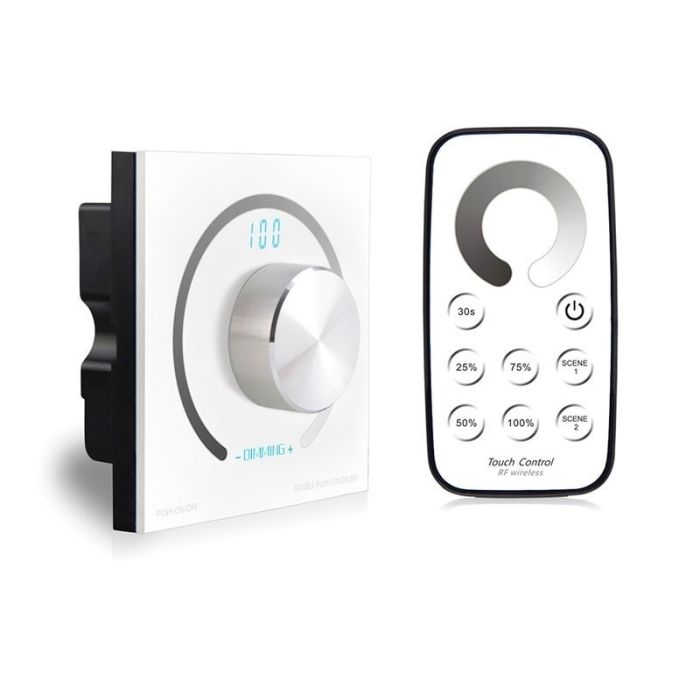

This LED signal dimmer is AC85-265V input, and outputs AC85-265V, 0-10V analog signals, PWM 5V or PWM 10V signal.
With our T1 wireless remote to control led lamps by radio frequency, and adjust the signals, easy to install,
it's suitable for commercial or household standard 86 type socket base.
Feature function:
1. Automatically adapt to AC85-265V working voltage.
2. High voltage input, isolation power supply, can be used with dimming power.
3. Standard 86-style socket, easy to install.
4. Rotary knob adjustment，fashion design, simple to use.
5. 2CH output, 100 brightness level.
6. Power loss memory function.
Model:K1- 010V
Input Voltage:AC85-265V
Output Voltage:AC85-265V
Max Output Current:10A
Output Signal:0-10VAnalog Signalx2CH
Max Output Signal Current:40mAx2CH
Working Temp:-20°C-55°C
Dimension:L86×W86xH50(mm)
Weight(G.W):130g
Model:T1 Wireless Remote Control
Working Voltage:3V(CR2032)
Working Frequency:433.92MHZ
Remote Distance:40m-50m
Working Temp:-20°C-55°C
Dimensions:L106×W56xH9(mm)
Weight(G.W):40g
Package Include:
1 Piece of Bincolor T1 + K1-010V LED Signal Dimmer LED Wireless Remote Control Socket Knob Adjustment
CE and RoHS approved
