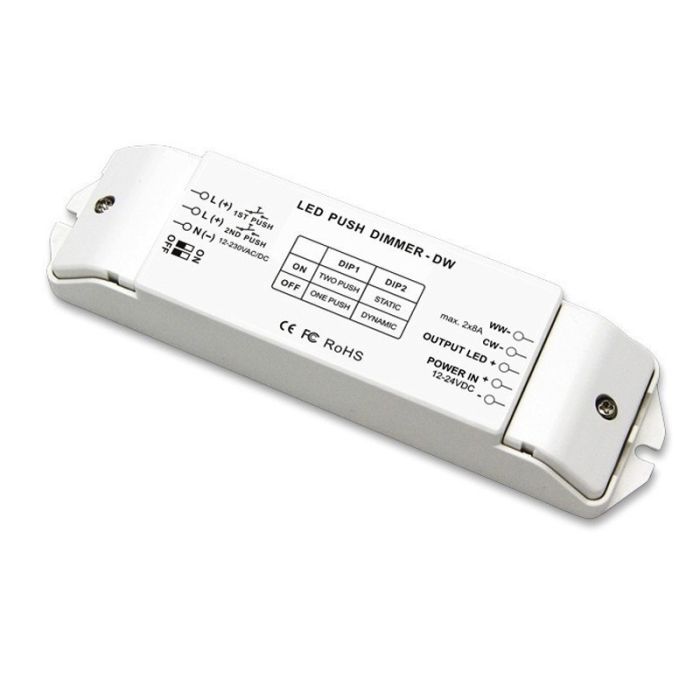

Welcome to use this constant voltage CCT controller, it adopts PWM (Pulse-Width Modulation) digital brightness control technology;
it changes the dimming modes by DIP switch and duplex push dim button, it's suitable for 2 channels' constant voltage CCT LED lights.
Basic Features:
Automatically adapts to DC12V-24V.
2 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker
One PUSH or two PUSHs selectable, Static mode and dynamic mode switchable.
Power loss memory function.
Over current protection, short circuit protection.
Specifications:
Input voltage: DC12V-24V
Max output current: 8A×2CH
Max output power: 96W×2CH W (12V) / 192W×2CH (24V)
Grey scale: 4096 levels × 2
Wroking temperature: -20-55℃
Product size: L176×W46×H30(mm)
Weight:145g
Package Include:
1 Piece of Bincolor Led Controller BC-422 DIP Switch Duplex Push Dim Button PWM Control
CE and RoHS approved
