Welcome to use our DALI dimming driver, which input standard DALI signal and adopted the most advanced DALI standard IEC62386. It can meet with any
equipment in line with the DALI protocol on a bus control, and realize the LED lighting products and traditional lighting integrate within the same set of lighting system.
We also add short circuit protection and over-current protection in the driver, which avoid the LED lamp from being damage.
Feature function:
Automatically adapts input voltage DC12V-24V.
can meet with any equipment in line with the DALI protocol on a bus control.
4096 grey levels, lamplight soft and stable, without flickers.
With the DALI signal input optical isolation protection.
Over current protection and short circuit protection.

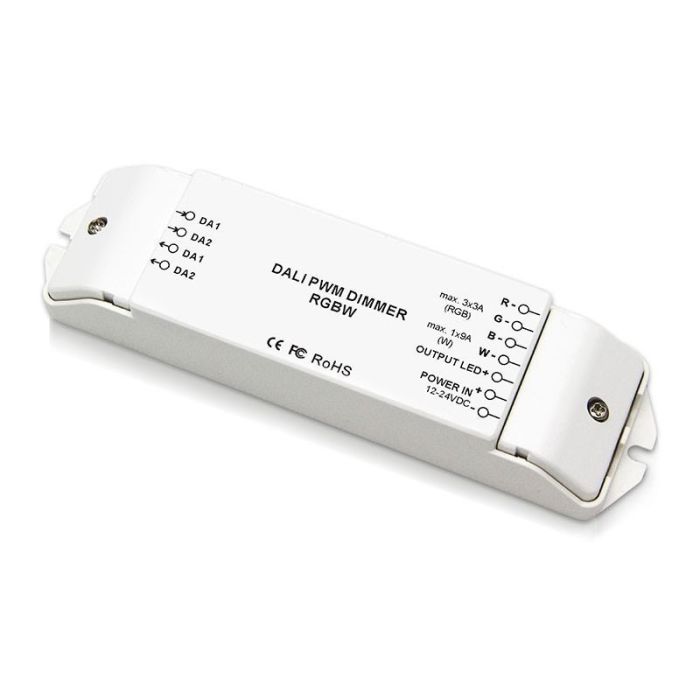

BC-344 CV 4CH DALI Dimming Driver
Product Model: BC-344
Input voltage: DC12V-DC24V
Output current:RGB:3A/CH×3 W:9A/CH×1
Output Power: RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216(24V)
Input Signal: DALI Dimming signal
Grey Scale: 4096 levels
Dimension: L176×W46×H30(mm)
Weight (G.W) : 145g
Package Include:
1 Piece of Bincolor Led Controller BC-344 DC 12-24V CV DALI Dimmer Dimming Driver
CE and RoHS approved
