Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer
control technology to transfer standard RDM-DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 65536 gray scales,
workable for single color, color temperature, RGB and RGBW led lamp.
Feature function:
1. Easy operation with OLED screen and touch buttons.
2. 8bit (256 levels)/16bit (65536 levels) grey level optional.
3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting,
DMX address setting, equipment recognition, etc.
4. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
5. Power-off data saved function.
6. Over current protection and short circuit protection.
Product parameter：
Model:BC-844
Input voltage:DC12V-24V
Max load current:5A×4CH, Max 20A
Max output power:240W(12V)/480W(24V)
Scale Levels:256 levels(8bit)/65536 levels(16bit)
Input signal:DMX512/RDM
Output Signal:Constant Voltage PWM×4CH
Output frequency:3K、6K、12K、24K selectable
DMX512 socket:Terminal block
Control mode:DIM /CT /RGB /RGBW 4 modes switch
Dimension:L176 X W46 X H30(mm)
Weight (G.W):140g
Package Content:

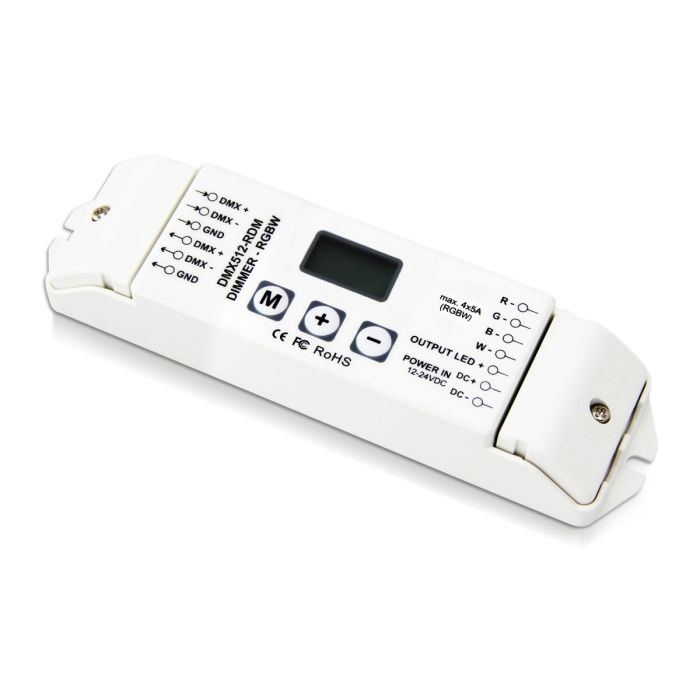

1 Piece of Bincolor DC 12V-24V BC-844 constant voltage DMX512-RDM decoder controller
1 Piece of User's manual
CE and RoHS approved
