LED constant current power repeater is specially designed for our single color and RGB controllers to expand power output,
it accepts PWM signal, double or three times more power can be reached by every one more power repeater, and in theory power repeater
can be added unlimitedly. Also, the power repeater of constant voltage model and constant current model could be connected freely,
suitable for synchronized controlling on different LED lamps.
Feature function:
Automatically adapt to LED light which works from DC12V-48V.
Accept PWM control.
Constant current:MAX2400mA
Unlimited connection quantity theoretically, unlimited power output expans
Maximum length from controller to repeater can be 500metersnotice.

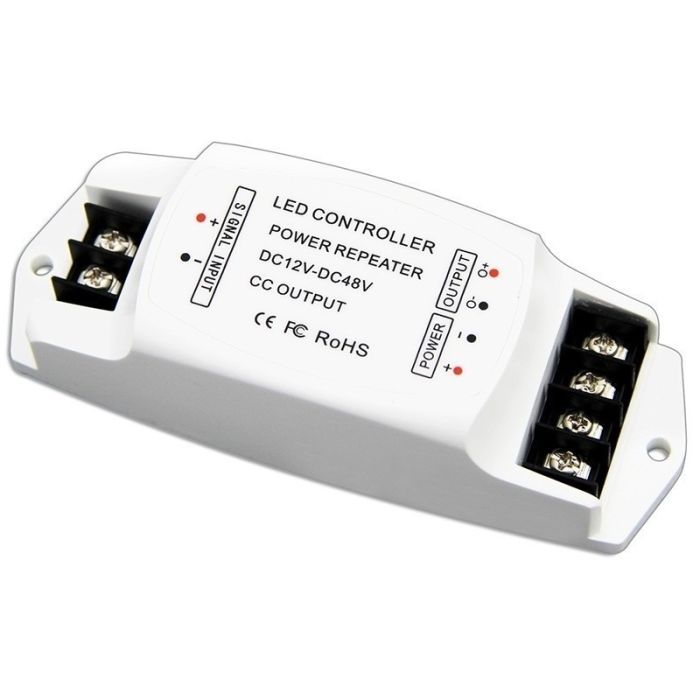

Model: BC-991
Input voltage: DC12V-48V
Output signal: Constant Current PWM
Max load current: Plz choose 350mA or 500mA or 700mA or 1050mA or 2400mA
Driving LEDs: 1-12pcs 1W(3W) LEDs
Switch size: L125xW45x H36(mm)
Packing size: L130×W47×H42(mm)
Gross weight: 90g
Package Include:
1 Piece of Bincolor BC-991 DC 12-48V Power Repeater Led Controller
CE and RoHS approved
