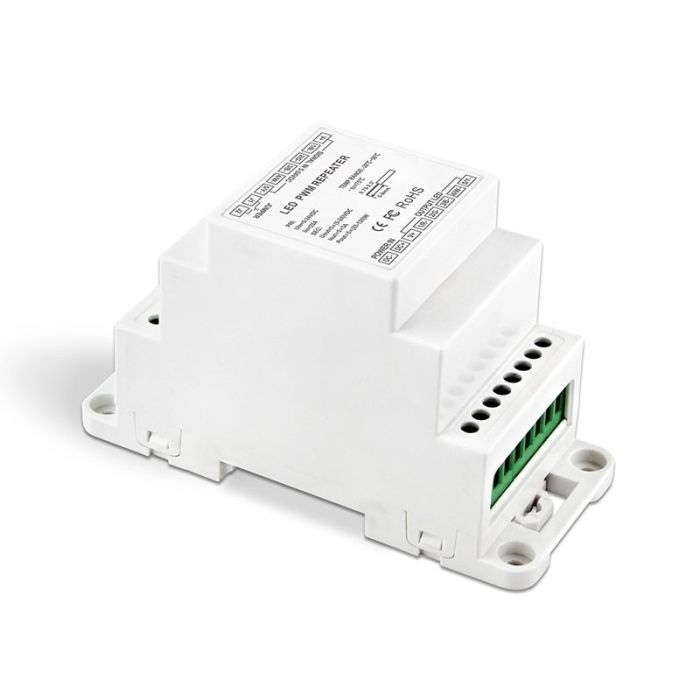

DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion, it accepts PWM SIGNAL, unlimited quantity of power repeater
to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely,
Suitable for synchronous control of different LED lamps.
Specifications:
Model: 5CH Power Repeater（BC-965-DIN）
Input voltage: DC5V-DC24V
Max Load Current: 5A×5CH Max 25A
Output Signal: Constant Voltage PWM
Max output power:125W/300W/600W(5V/12V/24V)
Dimension: L111×W46×H66(mm)
Weight (G.W) : 130g
Feature function:
Common anode input and output.
Sustain high frequency common anode PWM input signal.
Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
Over current protection and short circuit protection.
Optical isolation function, controller damage will not affect the repeater.
Output channels can be output independently or synchronously.
The DIN rail style facilitates the installation of large-scale projects.
Package Include:
1 Piece of Bincolor BC-965-DIN Power Repeater DIN Rail DC5V-24V Amplifier Led Controller
CE and RoHS approved
