LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, unlimited quantity of power repeater
to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely,
suitable for synchronized controlling on different LED lamps.
Feature function:
Common anode input and output.
Sustain high frequency common anode PWM input signal.
Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
Over current protection and short circuit protection.
3000V optoelectronic isolation.

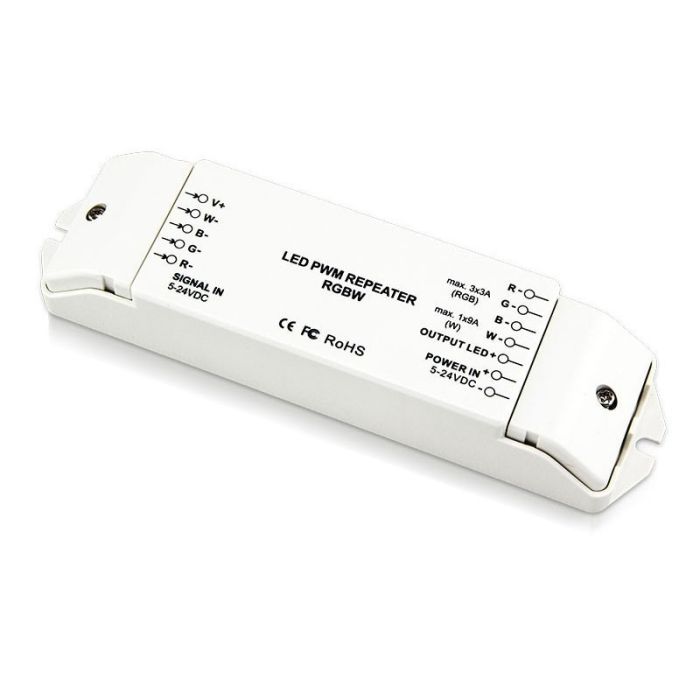

Model Number: BC-964
Input power: DC5V-DC24V
Maximum load current: RGB: 3A×3CH W: 9A×1CH
Output signal: Constant voltage PWM
The maximum output power: RGB:36W×3CH W:108W(12V)/RGB:72W×3CH W:216W(24V)
Product Size: L176×W46×H30(mm)
Packing size: L178×W48×H35(mm)
Product weight : 120g
Package Include:
1 Piece of Bincolor BC-964 High Frequency 4CH Power Repeater 5-24v Led Controller
CE and RoHS approved
