LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, the control quantity
of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Also,
the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Feature function:
3 Channels RGB output, 8A/CH(total 24A) Single output channel
Accept PWM control.
Unlimited connection quantity theoretically, unlimited power output expansion.
Maximum length from controller to repeater can be 500meters
Model:BC-960-8A
Input voltage: DC5V-24V
Max load current: 8A/CH×3
Max output power: 120W(5V)/288W(12V)/580W(24V)
Dimension: L165xW56xH36 (mm)
Packing size: L170xW77xH45 (mm)
Gross weight: 150g
Package Include:

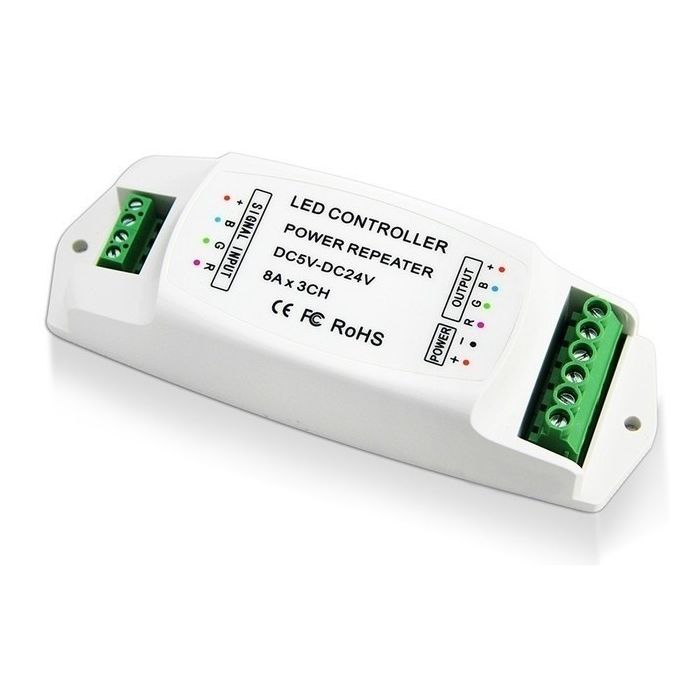

1 Piece of Bincolor BC-960-8A Power Ampilier 8A*3CH Data Repeater Led Controller
CE and RoHS approved
