LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, the control quantity of LED lights
would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of
constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Feature function:
3 Channels RGB output 10A*1CH Single output channel, totally 10A
Accept PWM control.
Unlimited connection quantity theoretically, unlimited power output expansion.
Maximum length from controller to repeater can be 500meters
Model: BC-960-10A
Input voltage: DC5V-24V
Max load current: 10A/CH×1
Output signal: Constant Voltage PWM
Max output power: 50W(5V)/120W(12V)/240W(24V)
Dimension: L125×W45×H36(mm)
Packing size: L130×W47×H42(mm)
Gross weight: 85g
Package Include:

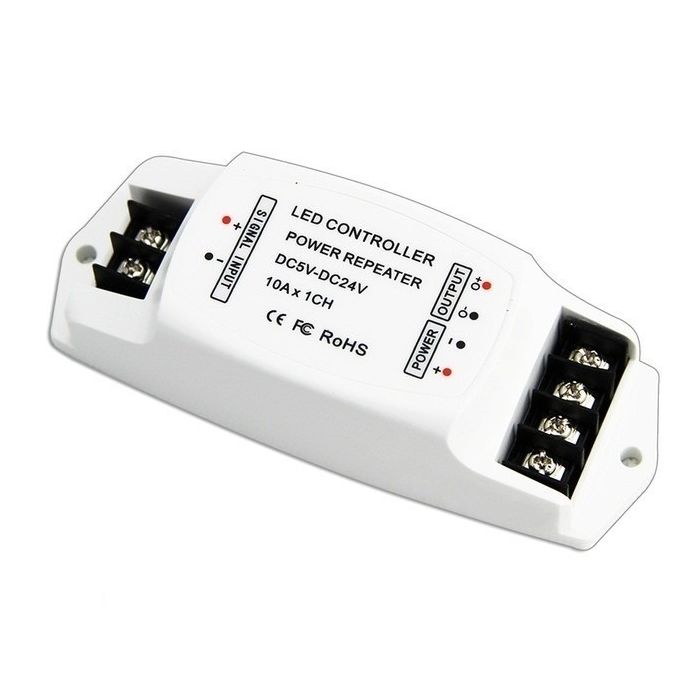

1 Piece of Bincolor BC-960-10A Power Ampilier 10A Data Repeater Led Controller
CE and RoHS approved
