Feature function:
1.In put standard DMX512 protocol，Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.Self-Changing Mode exist.
4.Output TTL Signal.
5.Power loss memory function.
Product Paramete:
model:BC-802-6803
Input voltage:DC5V～DC24V
Input signal:DMX512 /1990
Output signal:LPD6803, LPD1101, D705, UCS6909, UCS6912
Decoder channels:512 DMX CH
Grey Scale:32 levels
DMX512 socket:XLR-3，RJ45
Dimming range:0~100%
working temperature：-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight (G.W):320g
modeL:BC-802-1809
Input voltage:DC5V～DC24V
Input signal:DMX512/1990
Output signal:TM1803, TM1804,TM1809,TM1812,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912,WS2811
Decoderchannels:512 DMX CH
Grey Scale:256 levels
DMX512 socket:XLR-3，RJ45
Dimming range:0~100%
workingtemperature:-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight (G.W):320g
model:BC-802-9813
Input voltage:DC5V～DC24V
Input signal:DMX512/1990
Output signal:P9813
Decoder channels:512 DMX CH
Grey Scale:256 levels
DMX512 socket:XLR-3，RJ45
Dimming range:0~100%
working temperature:-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight (G.W):320g
model:BC-802-2801
Input voltage:DC5V～DC24V
Input signal: DMX512/1990
Output signal:WS2801, WS2803
Decoder channels:512 DMX CH
Grey Scale:256 levels
DMX512 socket: XLR-3，RJ45
Dimming range:0~100%
working temperature：-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight (G.W):320g
model:BC-802-8806
Input voltage:DC5V～DC24V
Input signal:DMX512/1990
Output signal:LPD8803、LPD8806
Decoder channels:512 DMX CH
Grey Scale:256 levels
DMX512 socket:XLR-3，RJ45
Dimming range:0~100%
working temperature:-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight(G.W):320g
model:BC-802-3001
Input voltage:DC5V～DC24V
Input signal:DMX512/1990
Output signal:TLS3001, TLS3002
Decoder channels:512 DMX CH
Grey Scale:256 levels
DMX512 socket:XLR-3，RJ45
Dimming range:0~100%
working temperature：-30℃～65℃
Dimension:L125×W52×H40mm
Package Size:L135×W70×H50mm
Weight (G.W):320g
Package Content:

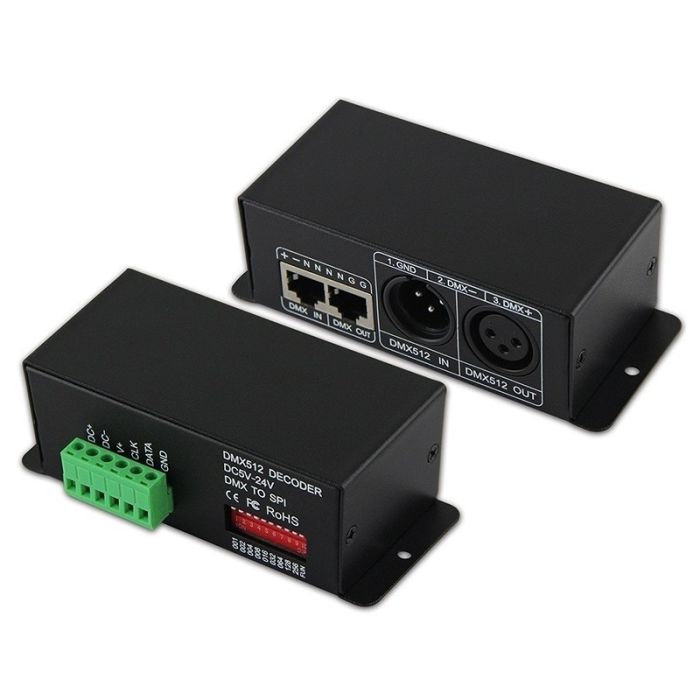

1 Piece of Bincolor BC-802 Led Controller DMX512 to SPI TTL Convertor Decoder
1 Piece of User's manual
CE and RoHS approved
