Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is specially developed for constant voltage LED lamps.
It adopts advanced microcomputer control technology to convert universal DMX512/1990 digital signal to PWM signal.32 output channels,
can be used to control constant voltage single color, color temperature, RGB type lamps. DIN Rail/screw dual-use installation method for easy installation.
Specifications:

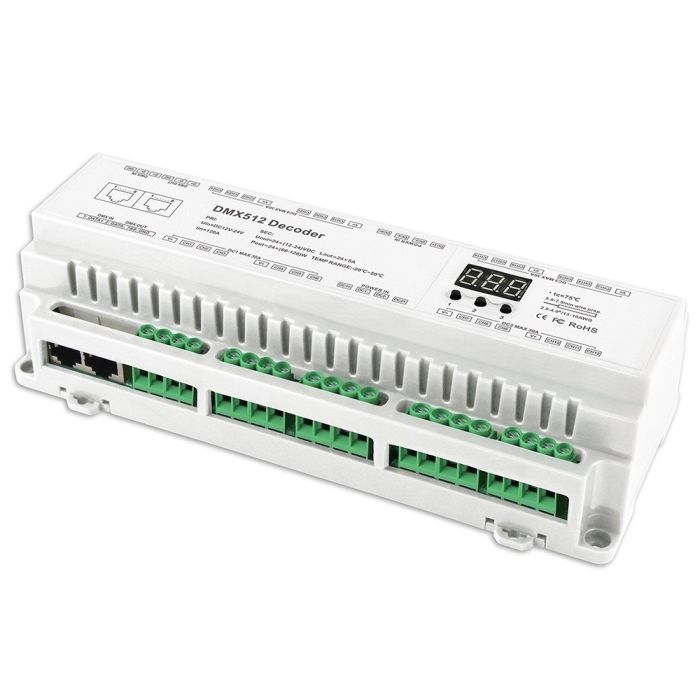

Model: 32CH Constant Voltage decoder(BC-632-DIN)
Input voltage: DC12V-DC24V
Max load current: 3A×32CH
Max Output Power: 1152W (12V) / 2304W(24V)
Input Signal: DMX512/8 bit/16 bit selectable
Output Signal: Constant Voltage PWM × 32CH
Decode Channel: 32CH
DMX512 socket: RJ45、Terminal Block
Dimension: L218×W90×H58.5(mm)
Weight (G.W): 331g
Package Content:
1 Piece of Bincolor Led Controller BC-632-DIN 32CH DMX512 12V-24V Decoder Driver
1 Piece of User's manual
CE and RoHS approved
