Specification:
AC85-265V input.
AC input,built-in isolated power protection.
Can dim singnal either by infinite switch knob or by IR remote.
The lowest dimming signal is selectable as 0%or 10% by changing the switch position.
Standard 86 style socket base,easy to install.
Delay OFF button, fluorescent indicator, users friendly.
25%, 50%, 75%, 100%,4 brightness shortcuts. and DIY modes for fast dimming.
Product parameter:BC-320-010V
Model:0-10V Signal Dimmer
Input voltage:AC85-265V
Output voltage:AC85-265V
Max output signal current:20mA
Max output current:10A
Output signal:0/1-10V analog Signal
Remote distance:10M
Product Size:L87×W87(mm)
Product Weight:200g
Note:Remote Battery is not include
Product Model:BC-320-PWM5V
Input voltage:AC85-265V
Output voltage:AC85-265V
Max output signal current:40mA
Max output current:10A
Output signal:PWM 5V signal
Remote distance:10M
Product Size:L87×W87(mm)
Product Weight:200g
Product Model:BC-320-PWM10V
Input voltage:AC85-265V
Output voltage:AC85-265V
Max output signal current:40mA
Max output current:10A
Output signal:PWM 10V signal
Remote distance:10M
Product Size：L87×W87(mm)
Product Weight:200g
Package Include:

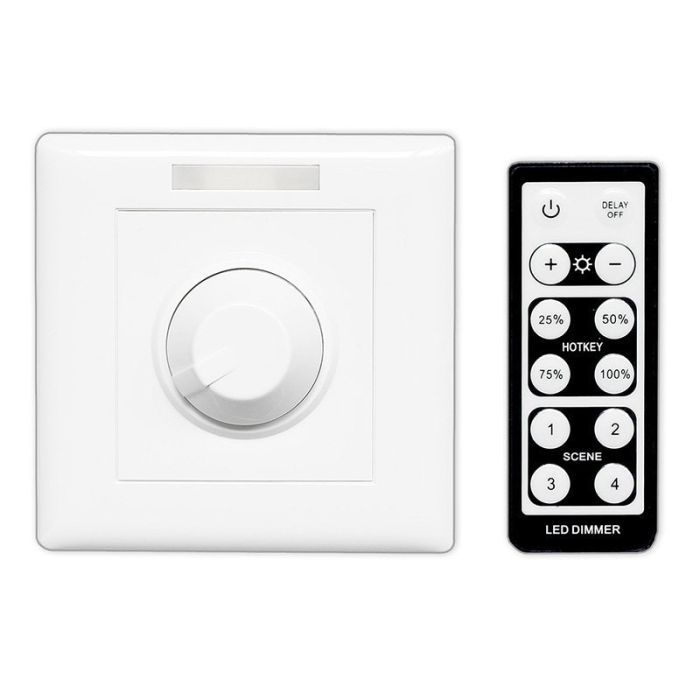

1 Piece of Bincolor BC-320-010V/PWM Led Dimmer AC 85-265V Wall Knob Controller with IR Remote
CE and RoHS approved
