Feature function:
Automatically adapt to LED light which works from DC12V-24V.
Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.
Workable for dimming, color temperature, RGB control.
2048 grey scales per channel, led lamp is more rich and vivid without flash.
Optional output frequency 0.5K、1K、2K、4K、8K.
Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.
Can compatible with T series wireless remote control in long distance.
Using Encoder rotary knob, instead of potentiometer, more durable.
Product parameter:

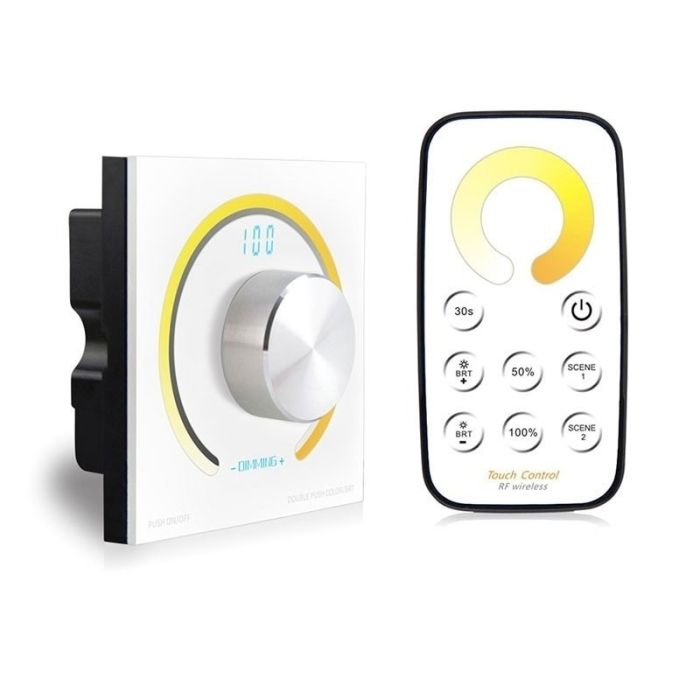

Model: K2(CCT) Rotary dimmer controller
Input Voltage: DC12V-24V
Load Current: 4A×2CH Max 8A
Optional output frequency: 0.5K、1K、2K、4K、8K
Grey Scale Level: 2048×2
Dimming Range: 1%-100%
Max Output Power: 96W(12V)/192W(24V)
Working Temperature: -20°C~55°C
Dimensions: L86×W86×H36(mm)
Weight(N.W): 130g
Model: Wireless Remote T2
Working Voltage: 3V(CR2032)（not include）
Working Frequency: 433.92MHz
Remote Distance: 30m
Working Temp: -20-55℃
Dimensions: L106×W56×H9(mm)
Weight(N.W.) : 40g
Package Include:
1 Piece of BC-K2-T2 Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer
CE and RoHS approved
