Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer
control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Basic Features:
Automatically adapts input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address.
3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specifications:

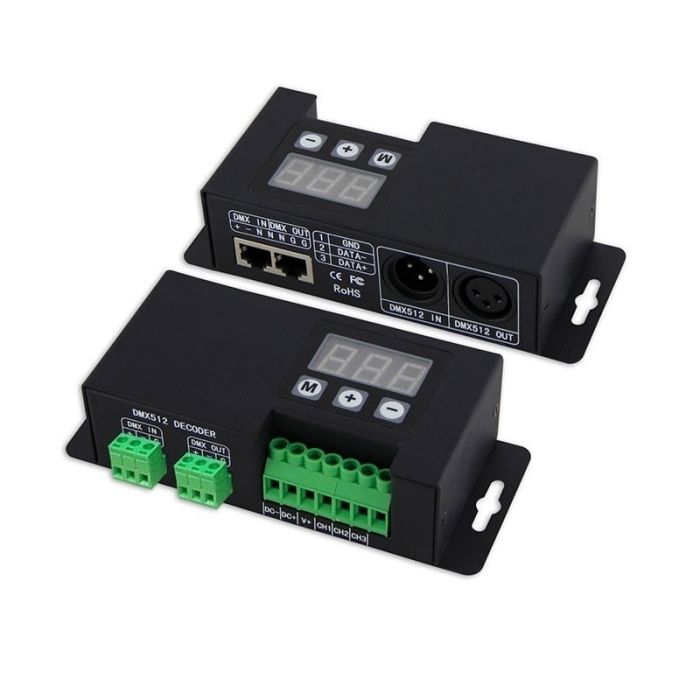

BC-853 3CH DMX512 Decoder
Product Model:3CH DMX512 Decoder
Input voltage:DC12V-DC24V
Max load current:RGB:6A×3CH
Max output power:RGB:72W×3CH(12V)/RGB:144W×3CH(24V)
Grey Scale:4096 levels×3
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM×3
Decode Channel:3CH
DMX512 socket:XLR-3R port/ RJ45 port/terminal block
Dimension:L157×W65×H40(mm)
Weight (G.W):450g
Package Content:
1 Piece of BC-853 Bincolor Led Controller 3CH Dmx Master CV PWM DMX512 Decoder Driver
1 Piece of User's manual
CE and RoHS approved
